In Stock: Precision MMBT Braiders — Zero Lead Time

MMBT by Metro CAD offers high-precision horizontal and vertical fine wire braiders in configurations from 3 to 300 carriers. Every system comes standard with an integrated digital camera scope for real-time measurement of braid angles and pic counts, ensuring total quality control. Designed for versatility, MMBT braiders supports advanced customization with triaxial kits, upgraded ceramic precision carriers, and a full range of caterpillar or capstan options to suit your specific production needs.

What Our Customers Say

"Metro Cad and their MMBT Braiders have helped us for years. Reliable, committed to continual improvement, and most importantly, they care."

-Matt Osten

Lightning Cath

All Reviews

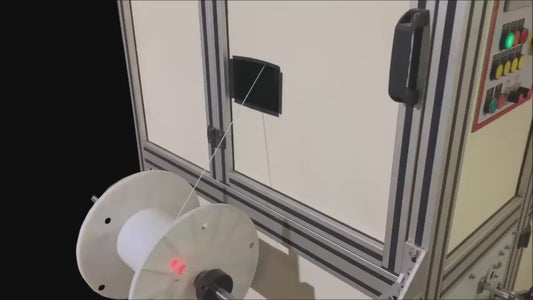

MMBT 16 Carrier Horizontal Braider Bobbin Winder

Built In Bobbin Winder

Horizontal Braiders Include a Built In Bobbin Winder. Runs Simultaneously with the Braider. Perfect for R&D to have bobbins ready and not run out.

Watch We Wind
MMBT24CVFWB_Caterpillar_Screen

Camera Inspection

Every Braider Includes a Built In Camera. Monitor the braid pattern live. Take Pictures, Video and take measurements to ensure pick count.

Watch Me Braid
Sound level meter displaying 80.6 dB with MMBT 16 Carrier horizontal braider in the background

Quiet Operation

Less than 81dB at 100% Speed. No Uncomfortable hearing protection needed.

Hear At Max Speed
304 NX stainless steel wire with a blue banner at the top

World Record! Braiding 11 Micron Wire.

At MD&M Midwest, MMBT16CVFWB achieved a micro braiding milestone by running a custom 304NX BenderWire 11-micron x 33-micron flat wire at 65.6% speed — over three times faster than the previous 11-micron round wire.

See Historic Braid

User Friendly Interface

MMBT quiet medical braiders have an Easy HMI Braider Software, an intuitive software platform that powers our braiding equipment for medical devices. Adjust Speed, Patterns, Segments, and PPI.

View Demo
mmbt braider showing spanish language on screen with carriers on background

Multilingual Braiders

Scaling to Costa Rica? MMBT medical braiders offer zero lead time,
Spanish and additional languages software, and dual metric/imperial measurements.

View Languages

Additional Options

  • mmbt-metro-cad-triaxial-kit

    Triaxial Kits

    Triaxial kits are available in quantities of 1 up to half the number of carriers on the braider. Carriers are pre-installed on two bars, with up to four carriers each for MMBT's 16 carrier braider.

    Learn More
  • MMBT Braider Coiler Kit with 8 Filer Disk for Medical Catheter Manufacturing

    Coiler Option Available

    MMBT Upgraded Coiler Kit turns any MMBT medical braider into a high-precision coiler in under 15 minutes. No extra software, no extra footprint—just better catheter performance.

    Watch Coiler
  • MMBT24CVFWB_Caterpillar_Precision_Carriers

    Precision Carriers

    Enhance your braiding performance with this MMBT Precision Carrier, engineered to significantly reduce friction when processing extremely fine wires.

    Learn More
Shop Now

Precision Braiders

Knowledgeable Braider Technicians

We pride ourselves in customer service. We continue to provide support. Have Questions, Don't Know What you need, Need Help? We will help you every step of the way.

Request a Quote

MMBT Horizontale Flechtmaschinen für feinen Draht

MMBT bietet leise arbeitende, hochmoderne digitale Rundhorizontalflechtmaschinen mit 300–300 Trägern auf einer kostengünstigen Plattform.

MMBT16CHFWB sind derzeit AUF LAGER!

Die Produktgröße für MMBT16CHFWB beträgt 0 (ohne Kern) bis 0,5 Zoll oder 12,5 mm.

Durch Ändern des grundlegenden Faden-/Drahtdurchmessers und der Anzahl der Fäden/Drähte pro Träger können zahlreiche Projekte erstellt werden. 3 Grundmuster sind Raute, Fischgrätmuster und Halblast.

Die medizinischen Flechtmaschinen von MMBT sind für das dreiachsige Flechten geeignet und verfügen über einen integrierten Spulenwickler. Die Anzahl der dreiachsigen Fäden entspricht der Hälfte der Träger. Die medizinischen Feindraht-Flechtmaschinen von MMBT verfügen über vertikal gefederte Träger aus reinem Nylon mit Hartmetallösen und einem optionalen dreiachsigen Kit. Die medizinische Flechtmaschine von MMBT verfügt über vier gezahnte Hornzahnräder, die sich mit 300 U/min drehen und bis zu 600 Schüsse pro Minute erreichen. Bis zu zehn Segmente können in einem Rezept programmiert werden, wodurch unterschiedliche PPI für jedes Segment möglich sind.

MMBT-Feindraht-Flechtmaschinen für medizinische Zwecke können die folgenden Drähte und Fasern flechten:

KABEL: Edelstahl, Kupfer, Nitril, Titan, Platin und Kobalt-Chrom.

FASERN: Nylon, Polyester, Dyneema, Kevlar, Vectran, Spectra, PET, PEN, PP, PEEK und LCP.
