Introducing the New HDMI Measurement Microscope Camera
MMBT by Metro CAD is proud to introduce our newest HDMI Measurement Microscope Camera—offering all the features you love from our previous version plus new enhancements for precision and usability.
See the camera in action in our short demo video below:
This next-generation HDMI microscope camera now comes standard on the MMBT-1D, MMBT-800, MMBT Unit 16, and MMBT Unit 17 microscopes.
Visit MMBT by Metro CAD at MD&M Midwest, October 21–22, Booth 3801 — and demo these microscopes in person. You’re welcome to bring your own parts to test live under the new camera system.
🔍 Key Camera Features
- Upgraded ½-inch sensor for a larger field of view and higher image clarity

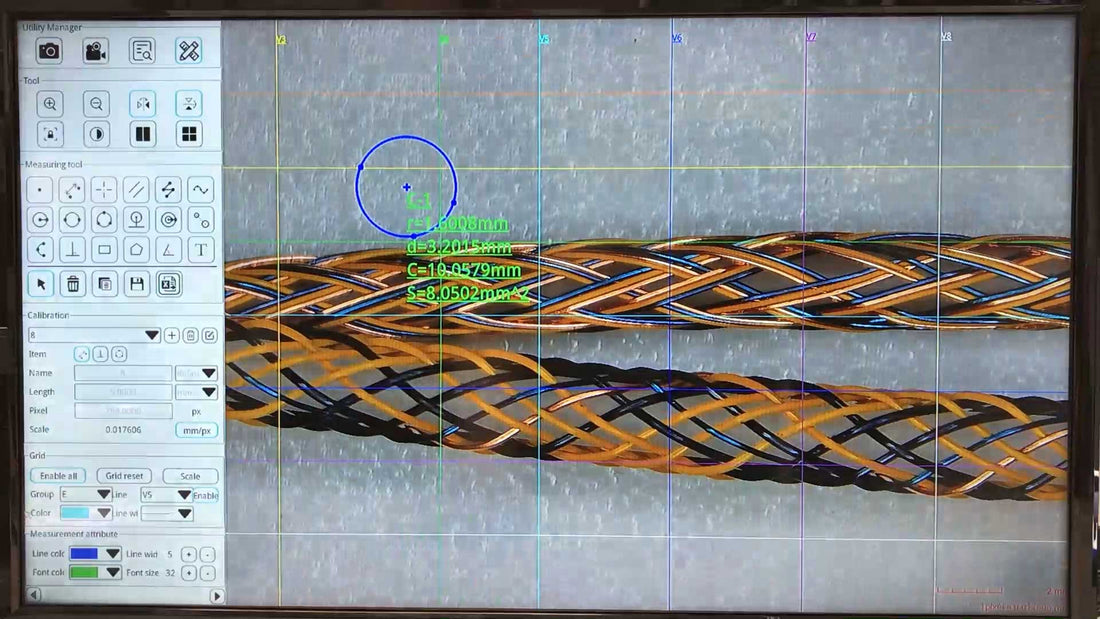

- Instant on-screen measurement tools — distance, angle, circle, and grid overlays
- Multiple image freeze and compare modes
- Digital zoom and picture-in-picture capabilities
- USB image saving for documentation and traceability
- Intuitive hover menu for fast measurement selection
Explore MMBT Microscopes with the New HDMI Camera
🧠 MMBT-1D | Precision XY Tool Scope
MMBT-1D is built for micro-inspection and fine measurement applications. With 50 mm × 50 mm XY travel and 0.002 mm resolution, it delivers smooth, accurate movement across your sample. The HDMI camera adds crosshairs, grid overlays, and instant image capture for enhanced precision.
⚙️ MMBT-800 | XYZ Tool Scope
Designed for larger assemblies and parts, the MMBT-800 provides an expansive 8" X, 6" Y, and 8" Z travel range with a solid XYZ stage for stable measurement. Combined with the HDMI camera, users gain precise line, circle, and angle tools plus freeze-frame comparison—perfect for inspection, documentation, and analysis.
🔩 MMBT Unit 16 | Dual-Arm Boom Stand Microscope
The MMBT Unit 16 is ideal for large or irregularly shaped parts requiring reach and flexibility. Its dual-arm bearing boom stand provides both stability and wide working range, while the 50×–200× magnification and bright LED illumination ensure clear, detailed views. Paired with the HDMI camera, users can capture crisp images, overlay grids, and take real-time measurements directly on-screen.
🔬 MMBT Unit 17 | Track Stand Microscope
MMBT Unit 17 offers a compact and stable setup ideal for quality control environments. Its track stand design allows precise vertical positioning, and the 50×–200× magnification delivers exceptional clarity for inspection tasks. The integrated HDMI camera enhances workflow with measurement overlays, freeze functions, and digital zoom.
📍 Visit MMBT at MD&M Midwest
See all of these microscopes and the new HDMI camera system live at MD&M Midwest, October 21–22, Booth 3801. Our team will be available for live demos and technical discussions—bring your own parts to test real-world applications.
MMBT by Metro CAD
Precision tools for inspection, measurement, and manufacturing excellence.
