Are you in the market for a high-quality measuring microscope camera that delivers exceptional performance? Let's dive into the features of MMBT 1080P HDMI Measuring Microscope Camera. This cutting-edge measuring microscope camera comes installed on Unit 16, Unit 17, MMBT-800 XYZ, and MMBT-1D XY Tool Scope Measurement Microscopes, making it a versatile and valuable tool for various applications.

MMBT 1080P HDMI Measuring Microscope Camera Demo

What sets MMBT 1080P HDMI Measuring Microscope Camera apart?

MMBT by Metro CAD's new measuring microscope camera model, MMBT 1080P USB MC, features a 1/2" sensor that provides a wider field of view compared to MMBT's older microscope camera that had a 1/3" sensor. This wider field of view allows for more detailed and comprehensive imaging, making it easier to capture precise measurements and analyze samples with accuracy.

What can MMBT 1080P HDMI Measuring Microscope Camera do?

MMBT 1080P HDMI Measuring Microscope Camera is capable of capturing both high-resolution images and videos, allowing users to document their findings effectively. Additionally, the camera is equipped with a convenient USB port that enables users to save their images and videos directly to a 16 GB USB drive for easy storage and sharing. This measuring microscope camera has a 10X digital zoom you can use the plus or minus buttons on the screen or the scroll wheel on the mouse.

• Length measurement
  • Straight Length
  • Broken Line Length
  • Curve Line Length
  • Distance Between Parallel Lines
  • Point-Line Distance
• Center Distance of Circles
  • Radius Setting Circle
  • Two Points Setting Circle
  • Three Points Setting Circle
• Geometric Measurement
  • Line Length
  • Radius Setting Circle
  • Two Points Setting Circle
  • Three Points Setting Circle
  • Concentric Circles
• Geometry Area
  • Polygon
  • Rectangle
• Image Capture
  • Supports 5M Static Photos
• Video Record
  • Supports 1080P @ 30 fps video
• Network Video
  • Support RTSP Network Streaming
  • RJ45 Interface
• Other Features
  • Horizontal/Vertical Mirror
  • Flip
  • Monochrome Color
  • Image Freeze
  • Image Contrast
• Accessories
  • DC-12V Power Adapter
  • Mouse
  • HDMI Cable

Compare 4 Images At One Time

MMBT 1080P HDMI Measuring Microscope Camera can compare 4 images at the same time. This is a great way to see 360 degrees around a part. Double click on the quadrant to freeze the image. Double click again to go back to the live microscope view if you need to readjust then double click to freeze the image again.

MMBT 1080P HDMI Measuring Microscope Camera Full Demo

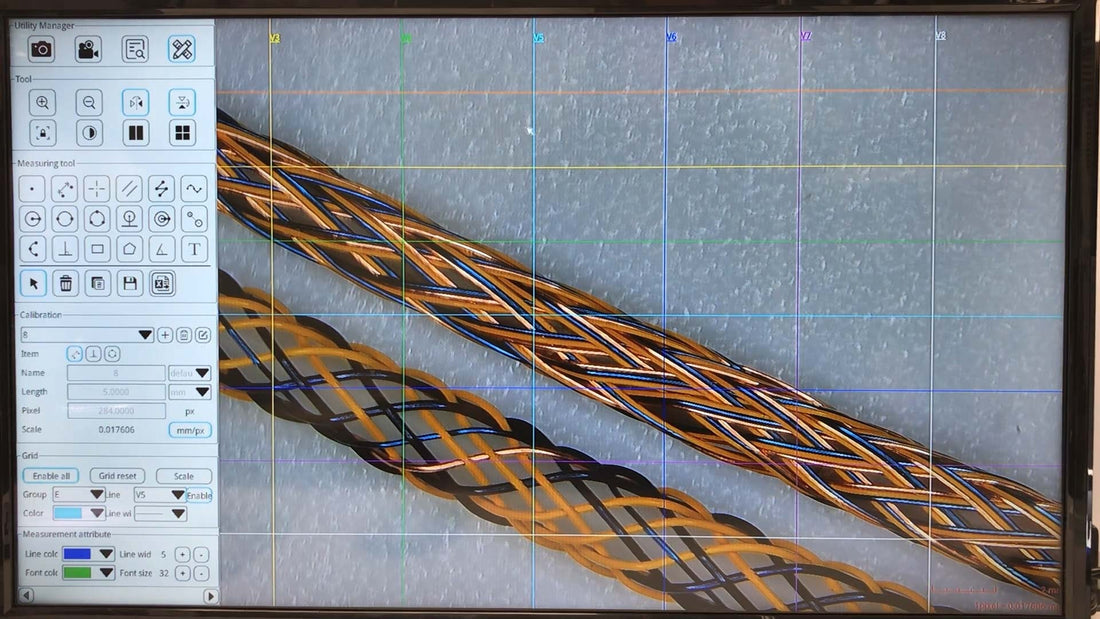

MMBT 1080P HDMI Measuring Tool Features

• Point
  • Draw Attention to Specific Point and will be numerically ordered
• Straight Line
• Cross Hair
• Parallel Lines
• Broken Line
  • will give you multiple lines and get total length of perimeter to stop right click
• Free form line
• Radius 2 points
• Diameter 2 points
• Full Circle 3 points
• Circle To Line
• Concentric Circles
  • Inner circle first then Outer circle or Outer circle first then Inner circle.

How does MMBT 1080P HDMI Measuring Microscope Camera simplify data management?

One of the standout features of the MMBT 1080P HDMI Measuring Microscope Camera is its ability to save measurements directly to a CSV file format. This functionality streamlines data management processes, making it easier for users to organize and analyze their measurement data efficiently.

MMBT 1080P HDMI Measuring Microscope Camera, users can enhance their microscope measurements workflow, improve accuracy in measurements, and streamline data management processes. Whether you are conducting research, quality control, or educational activities, this innovative camera is a valuable addition to any medical device laboratory or workspace.
