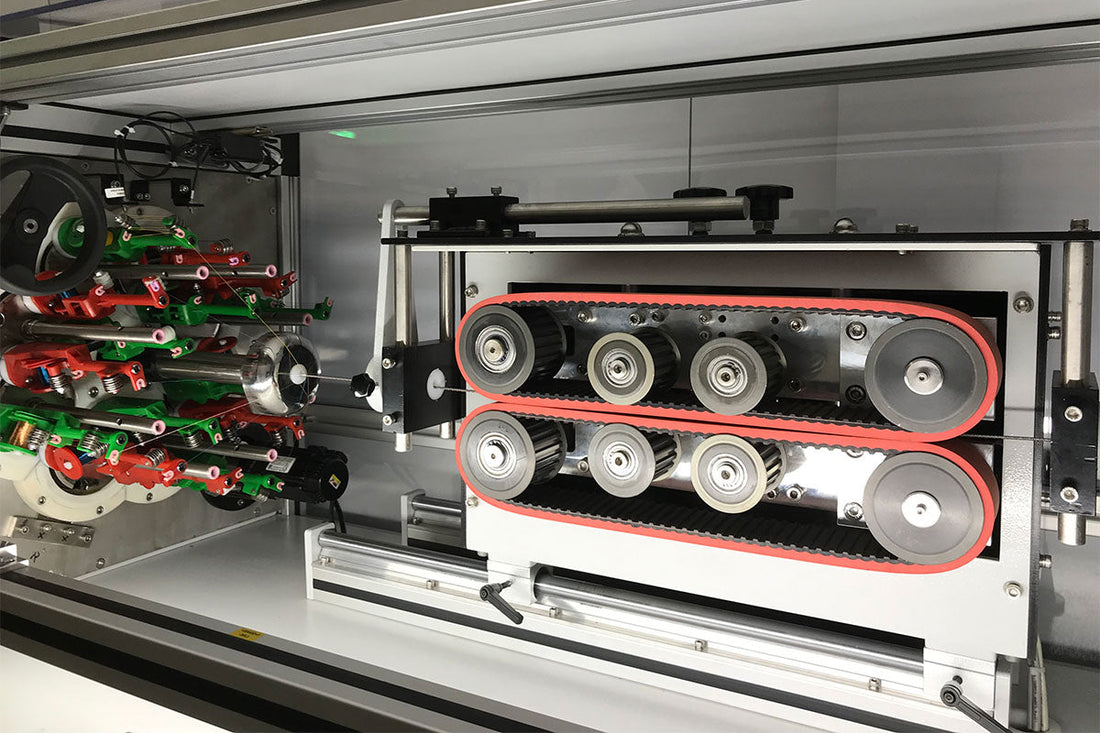

MMBT 16 Carrier Horizontal Fine Wire Medical Braider


The MMBT16CHFWB is a state of the art quiet operating digital round fine wire medical braider.

MMBT16CHFWB are currently IN STOCK

MMBT16CHFWB braider delivers the best in class braiding, with improved push ability, stiffness, torque response, flexibility, kink, and pressure resistance. Additional options include a triaxial kit, measuring camera options and die guides.

MMBT offers both vertical and horizontal carriers from 16 up to 288.
Common sizes are 16 | 24 | 32 | 48 | 64 | 72 | 96 | 144 | 288.

Schedule a demo. See a braider in person stop by Metro CAD Monday - Friday 8 am - 4:30 pm.

Elegant design, rigid structure, & high output with easy operation. Machine operating elements are grouped on a separate intuitive HMI panel for the ease of operation and clear visibility.

A wide range of projects can be produced by changing the basic thread/wire diameter and number of threads/wires per carrier. Three basic braid patterns are Diamond, Herringbone and Half Load. MMBT medical braiders are triaxial braiding capable. MMBT16CHFWB has 16 vertical spring-loaded virgin nylon carriers with carbide eyelets and optional triaxial kit from 1 to 8 triaxials. MMBT's 16 carrier medical braider has 4 horns per gear that can rotate @ 300 RPM and have up to 600 picks/min. Up to 10 segments can be programmed in one recipe, allowing for different PPI for each segment.

Product size for the MMBT16CHFWB is 0 (no core) to 50mm.

The 16 carrier horizontal fine wire medical braider by MMBT can braid the following wires and fibers:

WIRES: Stainless Steel, Copper, Niti, Titanium, Gold, Platinum and Cobolt-Chromium.

FIBERS: Nylon, Polyester, Dyneema, Kevlar, Vectran, Spectra, PET, PEN, PP, PEEK and LCP.

MMBT16CHFWB Medical Braider Specifications:

Machine Type : Round Braider
Machine Model : MMBT16CHFWB
Number of Heads : 1
Number of Carriers : 16
Horn Gear RPM : 300
Track Plate Material : Stainless Steel
Carrier Material : Virgin Nylon with Carbide Eyelets
Bobbin Size : Ø40.5 X 26.5mm
Bobbin Material : Virgin Nylon
Bobbin Volume (cm3) : 26
Connected Load (KW) : 1.2
Power Source : 3Ø, 200/230/260VAC/60Hz
Overall Dimensions, L X W X H (in) : 98.5 X 51 X 63
Machine Weight (Lbs) : 1,102

MMBT16CHFWB Features:

  • Heavy-Duty Aluminum Frame
  • Stainless and Alloy Steels
  • Quiet Operation :
    • 80.1 dB  @ Full Speed
    • 74 dB @ Half speed
  • Non-Contact Auto Stop For:
    • Wire Breaks
    • Empty Bobbin
  • Light Tower Indicator :
    • Green = OK to Run
    • Red = Fault Condition
  • Cost-Effective
  • Door Interlocks
  • High Output Diverse Range of Braids
  • Features 1 - 150 picks
  • Built in Bobbin Winder
  • Custom Die Guides
  • Measuring Camera Options

    Please contact us for a quote.

    For Continental USA, lease to buy options available.
