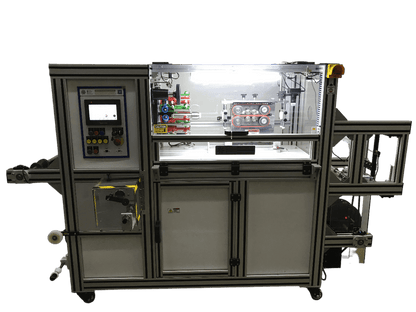

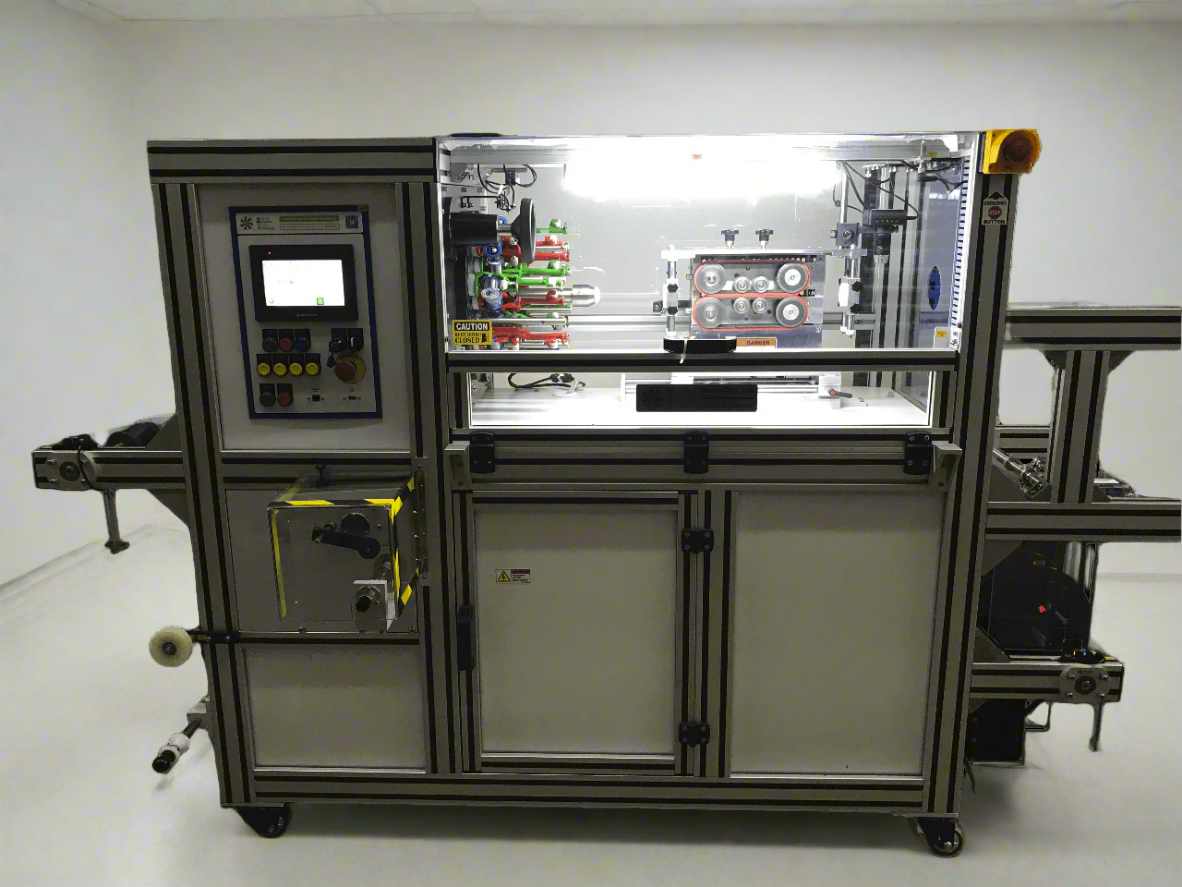

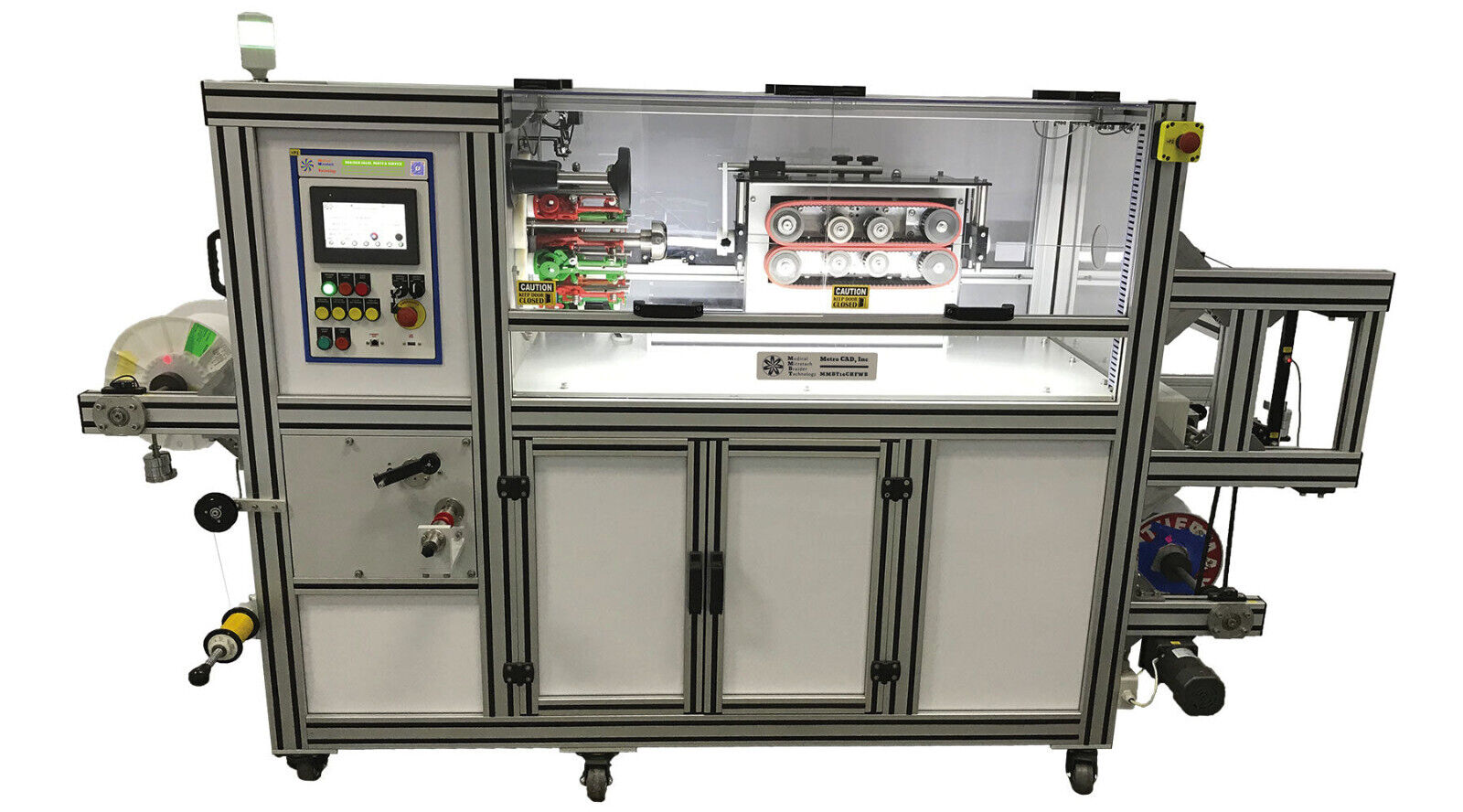

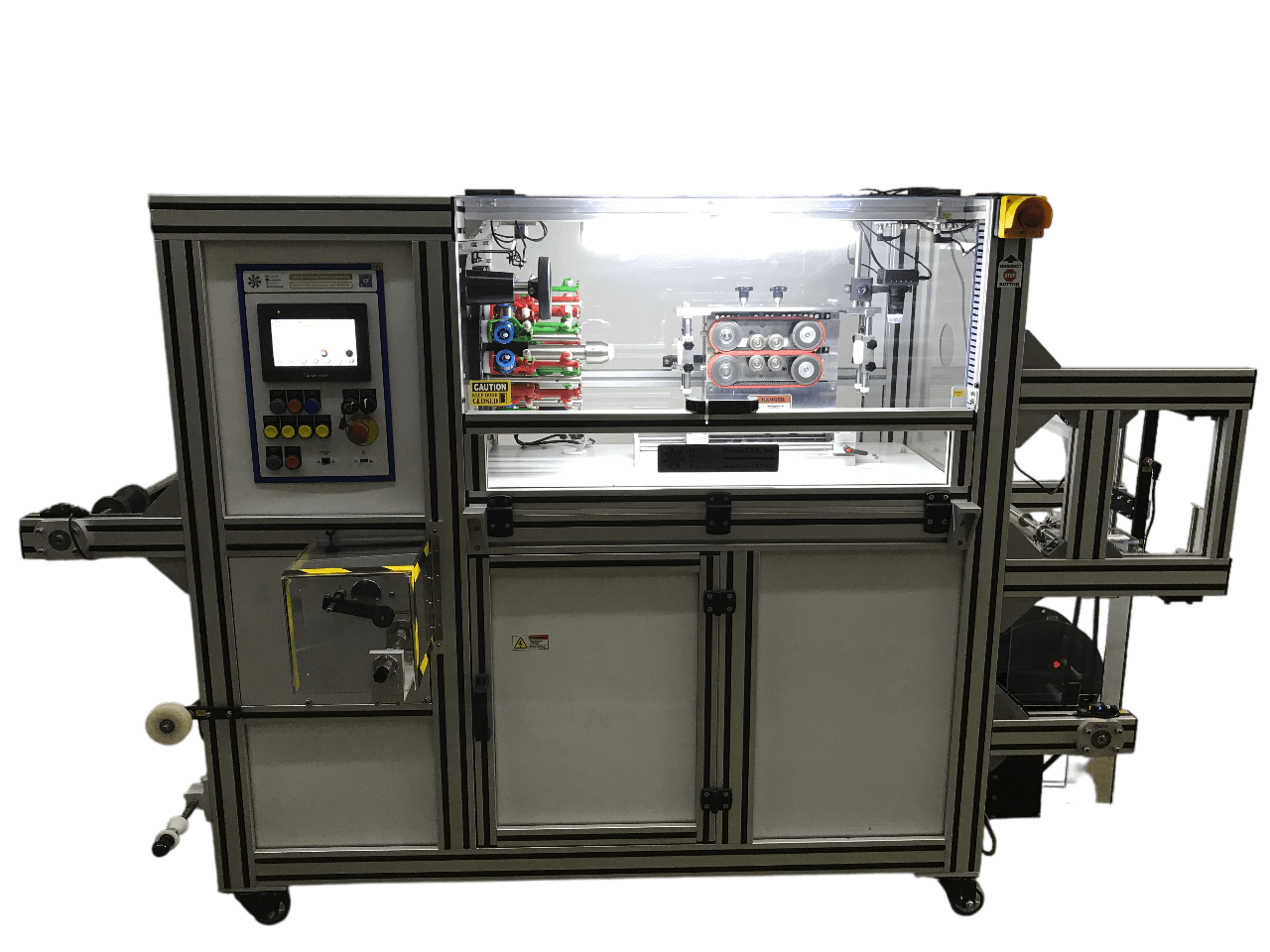

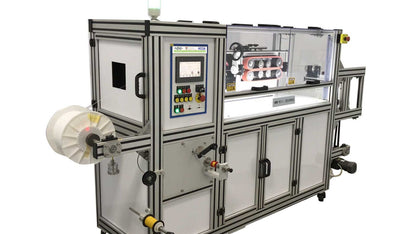

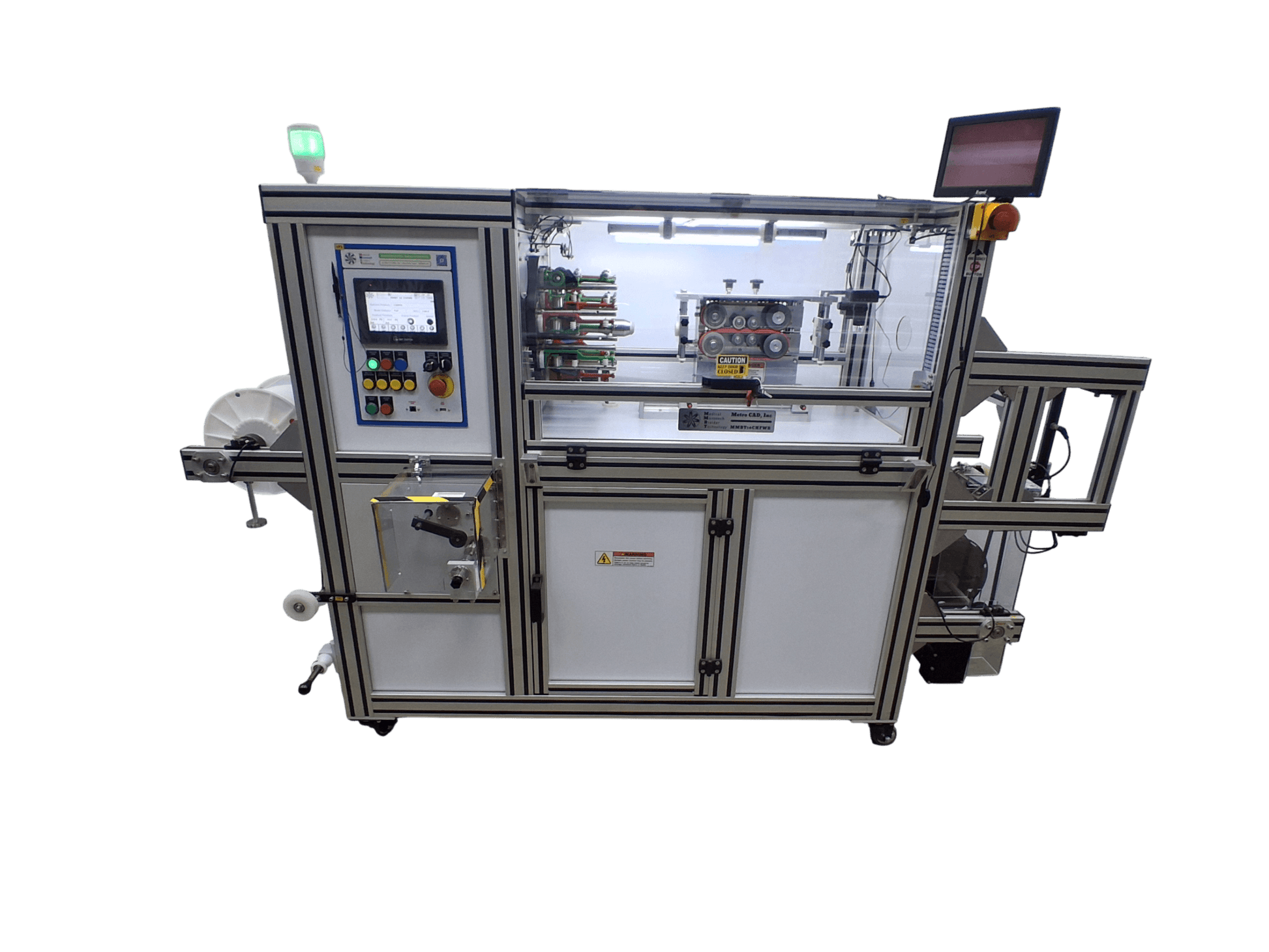

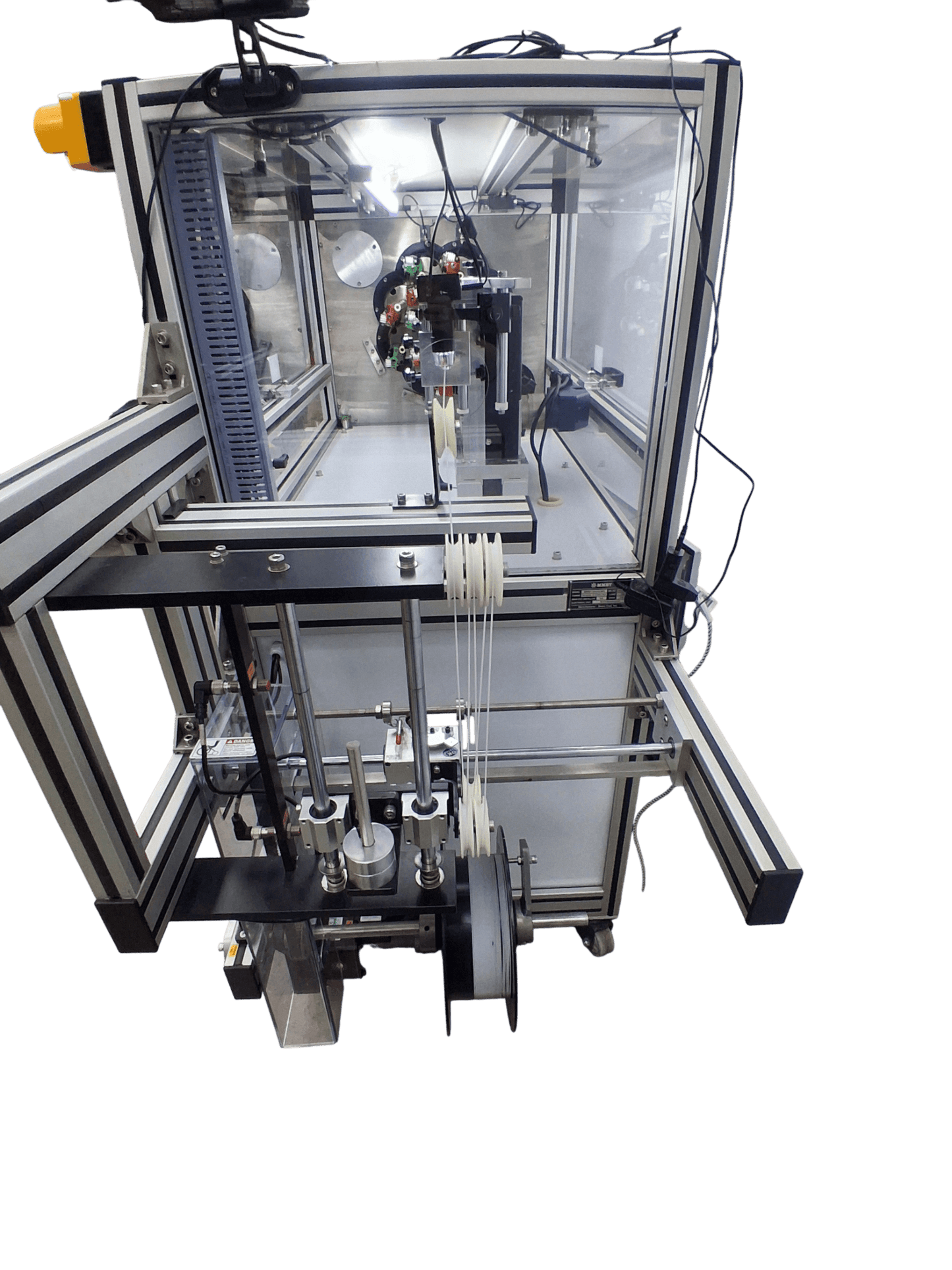

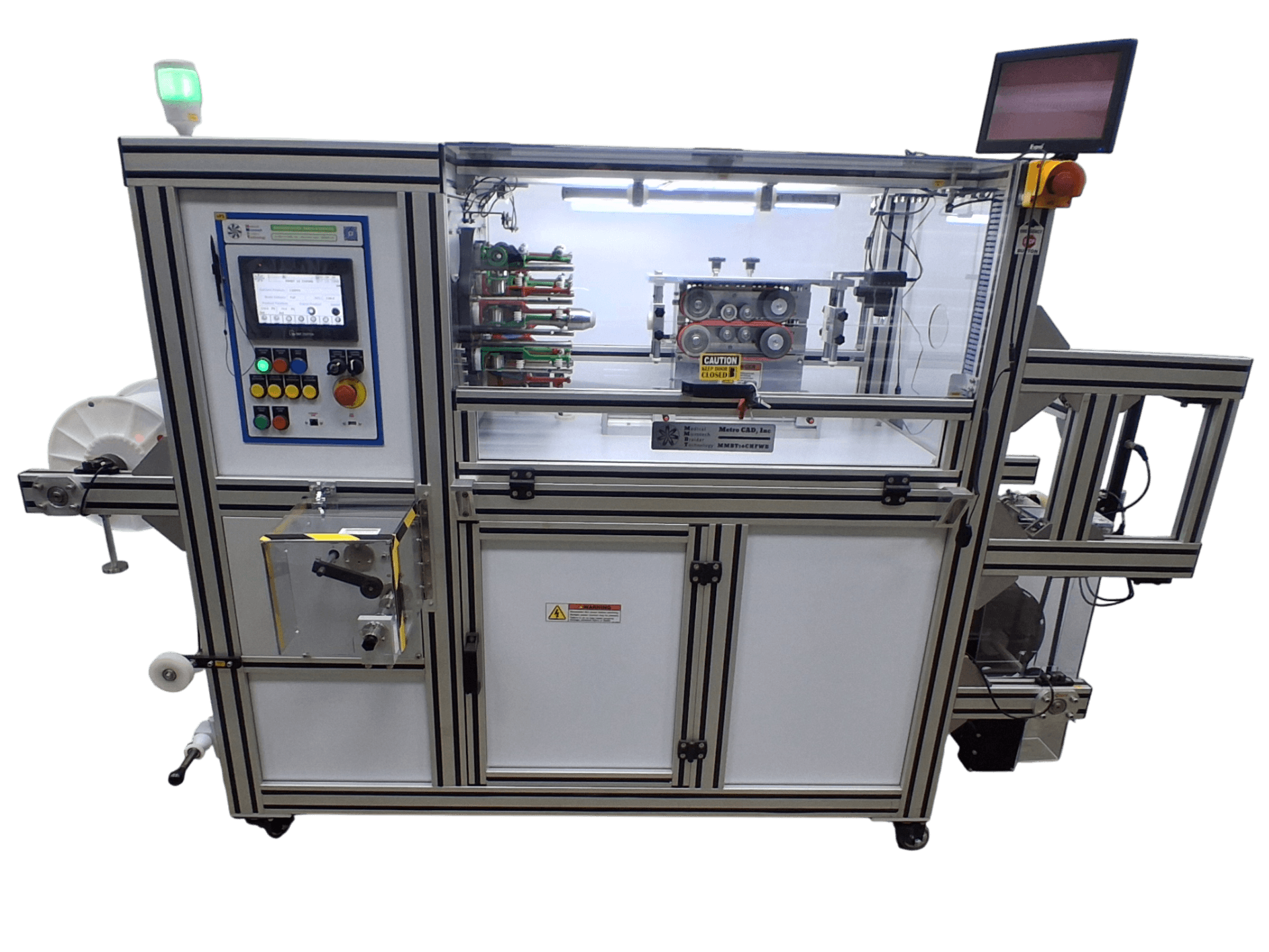

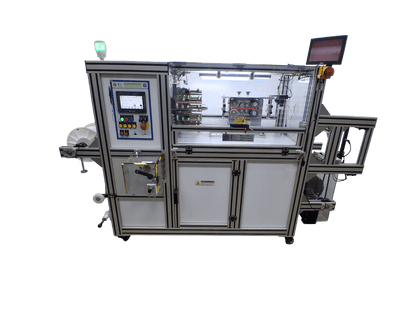

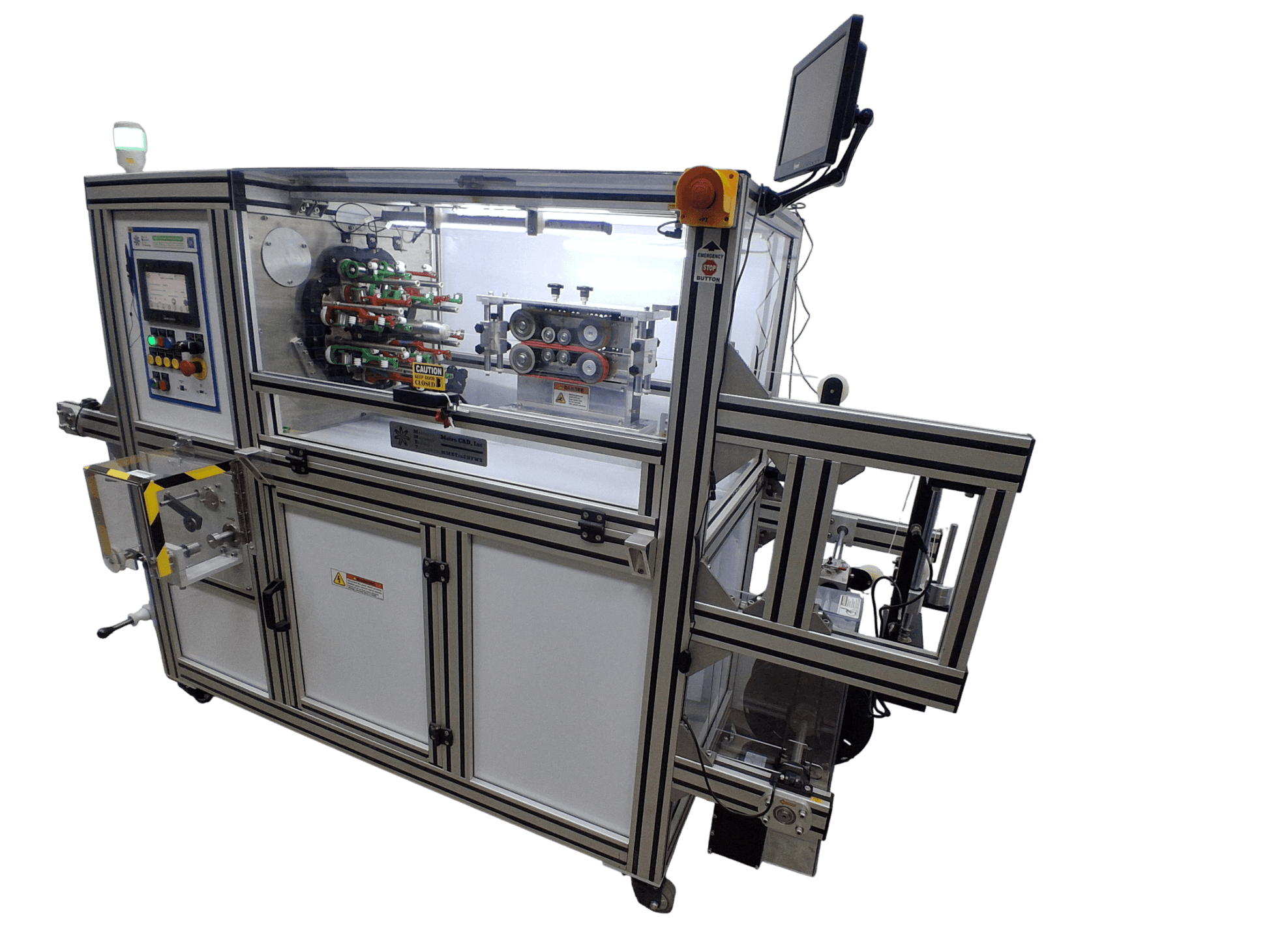

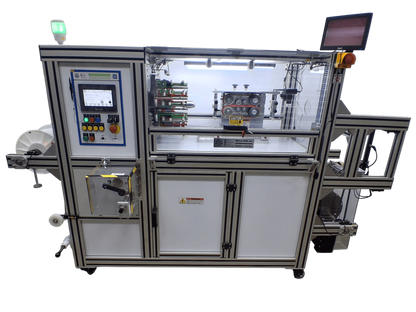

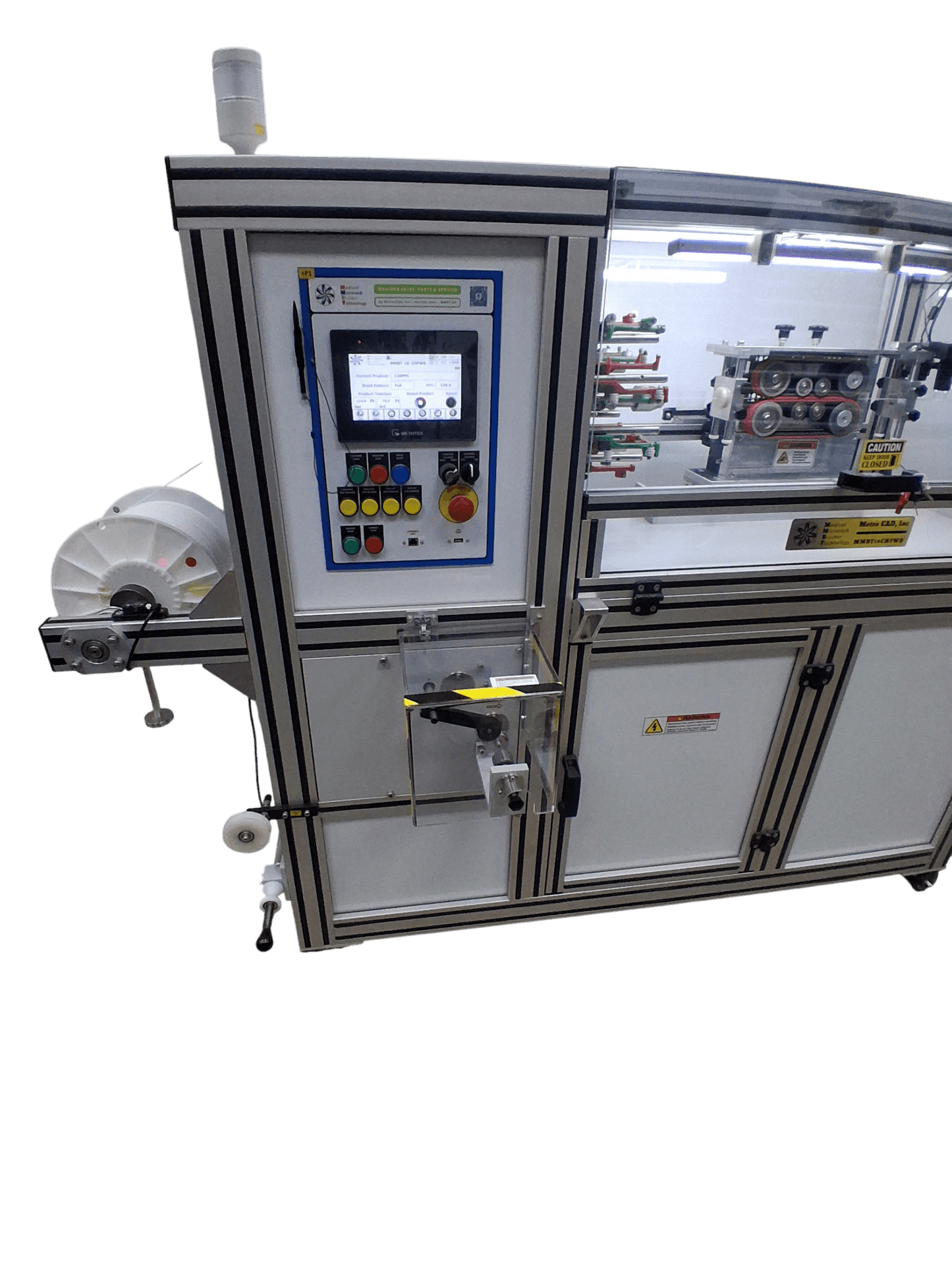

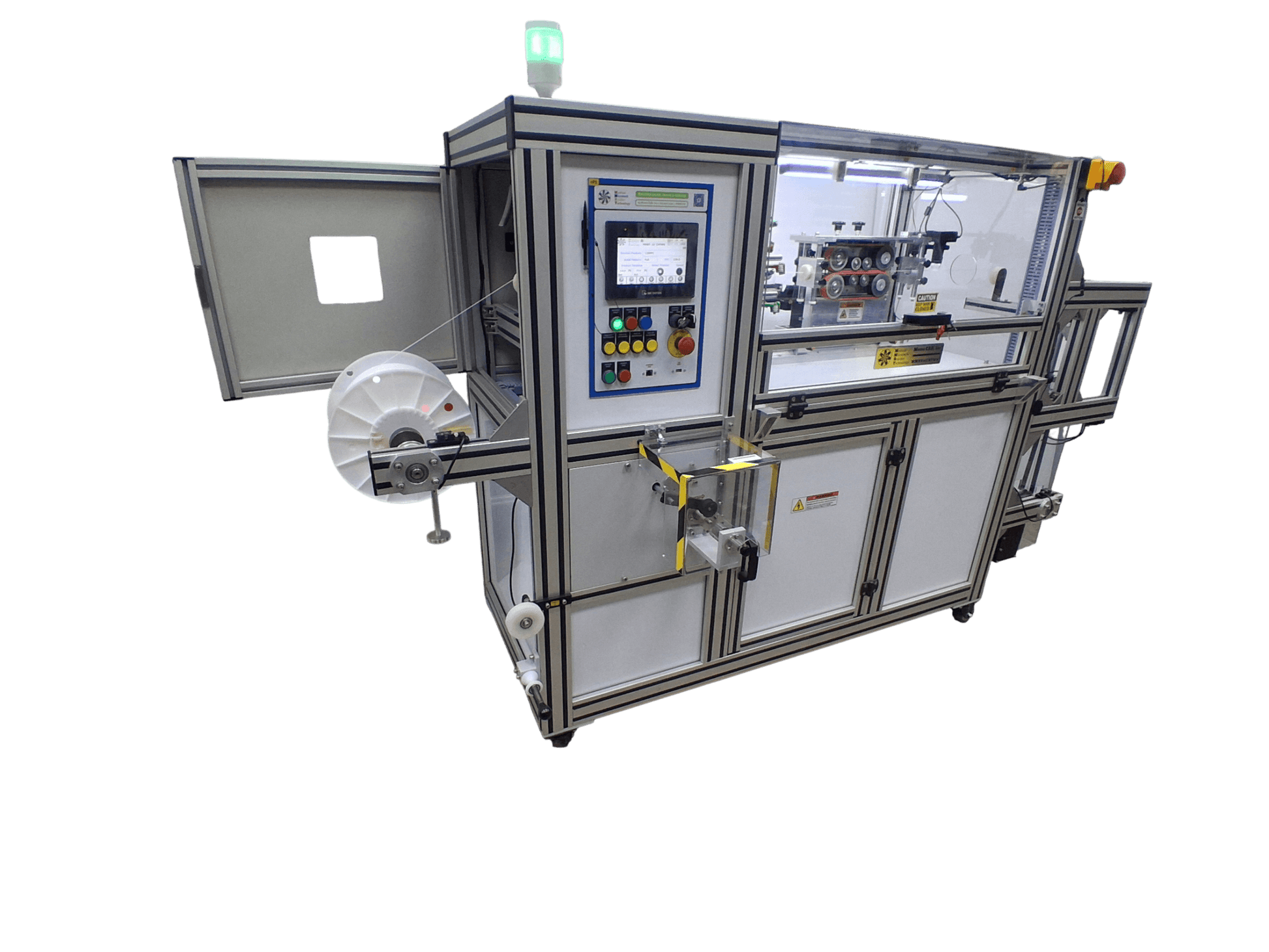

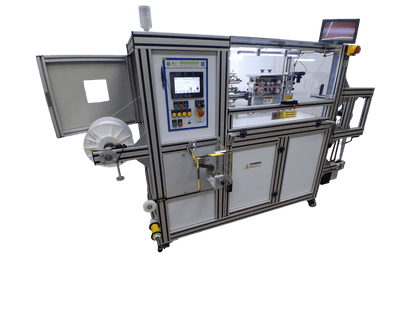

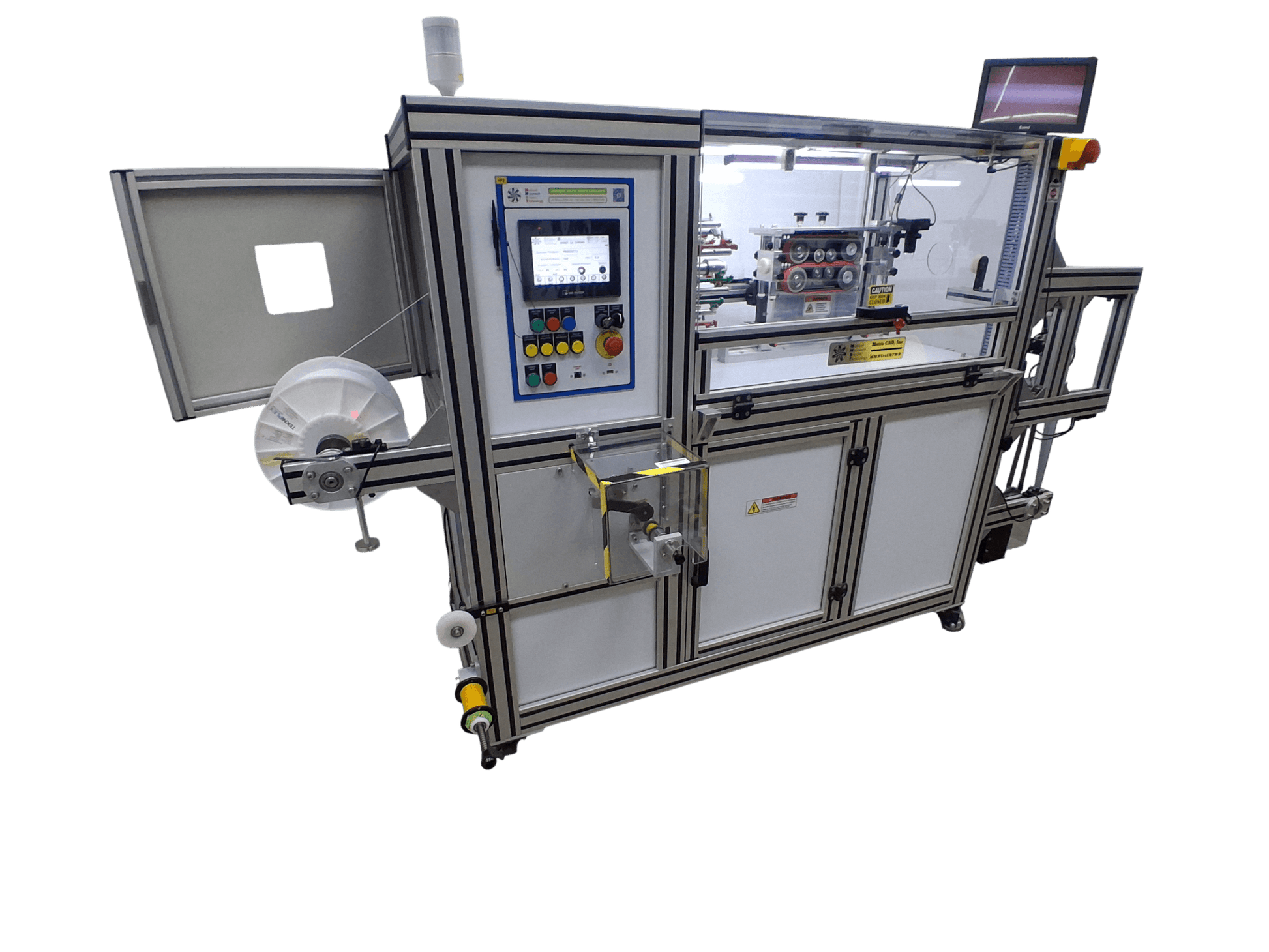

MMBT16CHFWB 16 Carrier Horizontal Fine Wire Medical Catheter Braider

MMBT16CHFWB 16 Carrier Horizontal Fine Wire Medical Catheter Braider

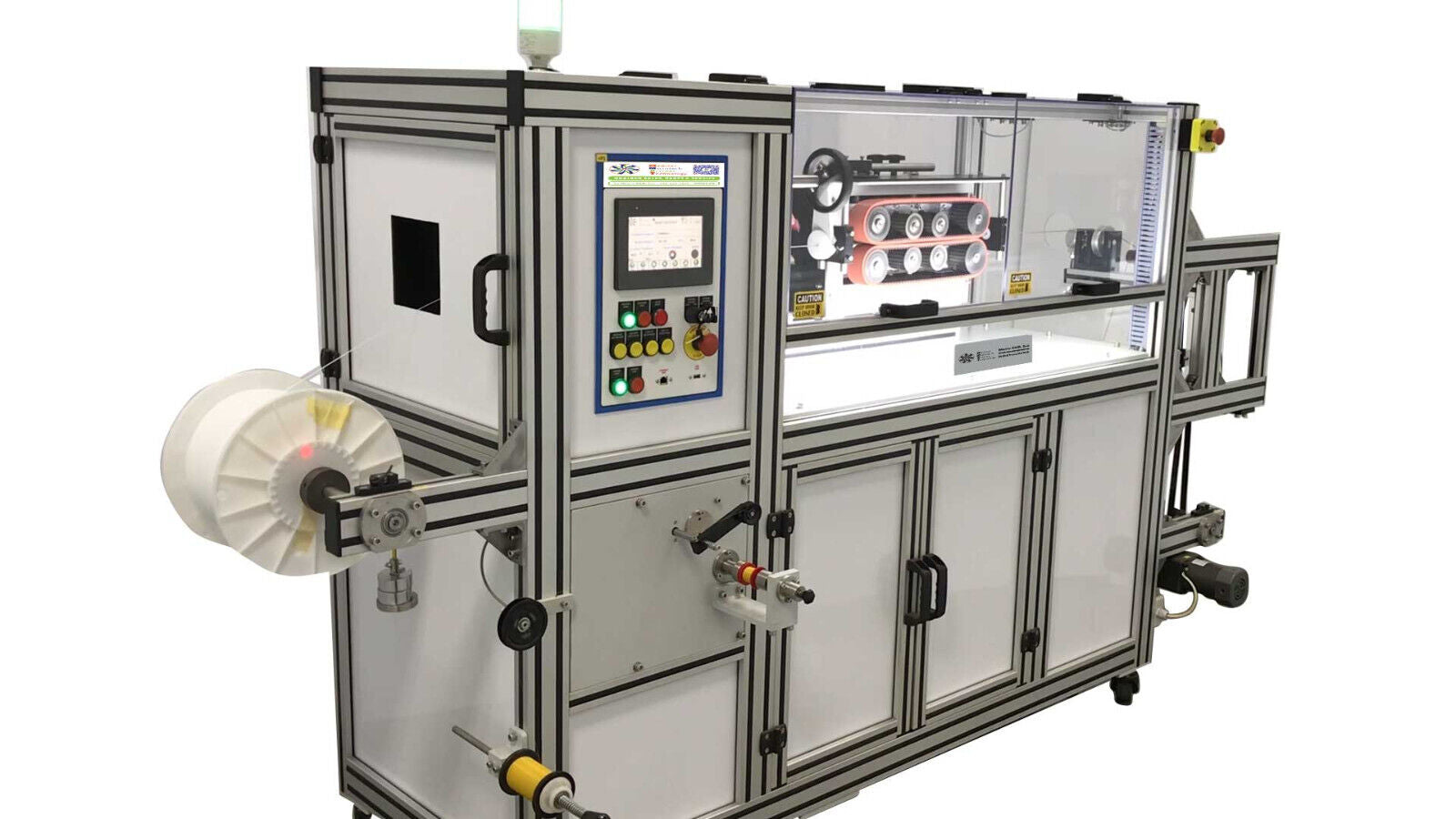

The MMBT16CHFWB is a state-of-the-art Digital Round Braider with quiet operation and a cost-effective platform and comes standard with casters. MMBT's horizontal braiders do not need a compressor to operate.

MMBT16CHFWB Quiet Operating Medical Braider

  • 80.1 dB at Full Speed
  • 70.2 dB at Half Speed

MMBT16CHFWB are currently IN STOCK.

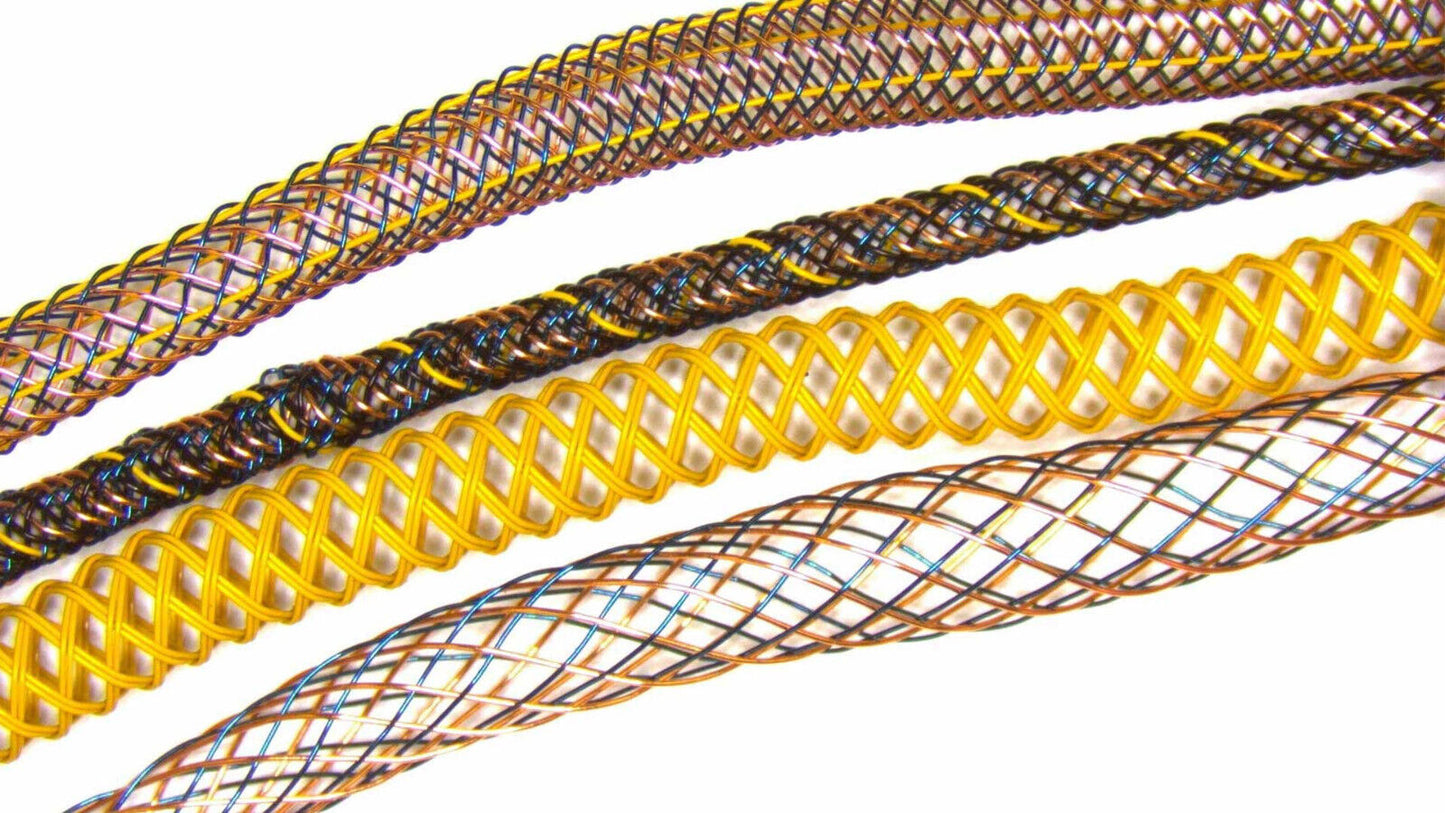

Wide range of projects can be produced by changing the basic thread/wire diameter and number of threads/wires per carrier. 3 basic patterns are Diamond, Herringbone and Half Load.

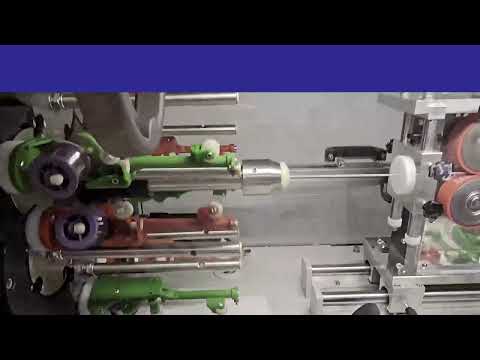

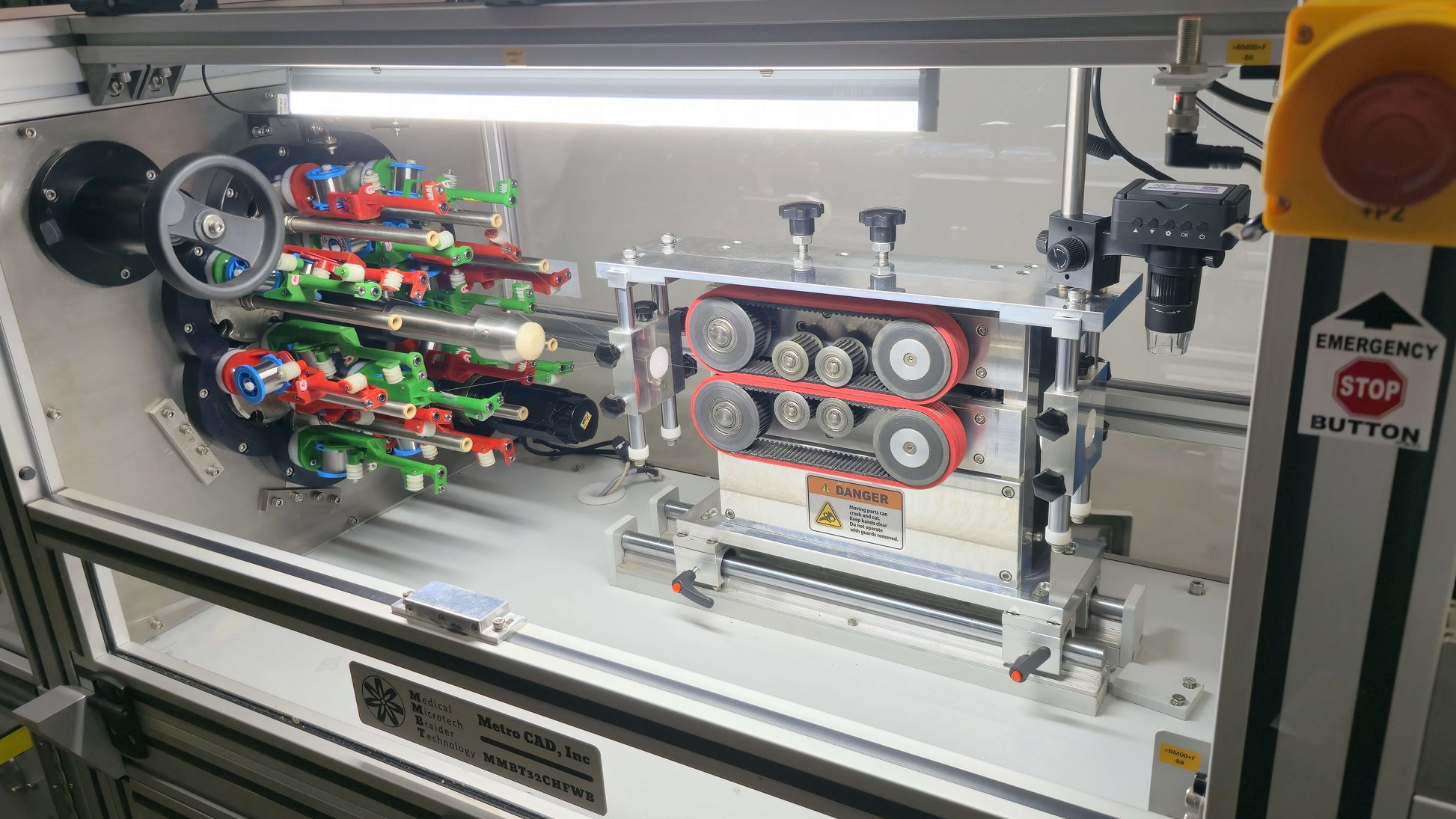

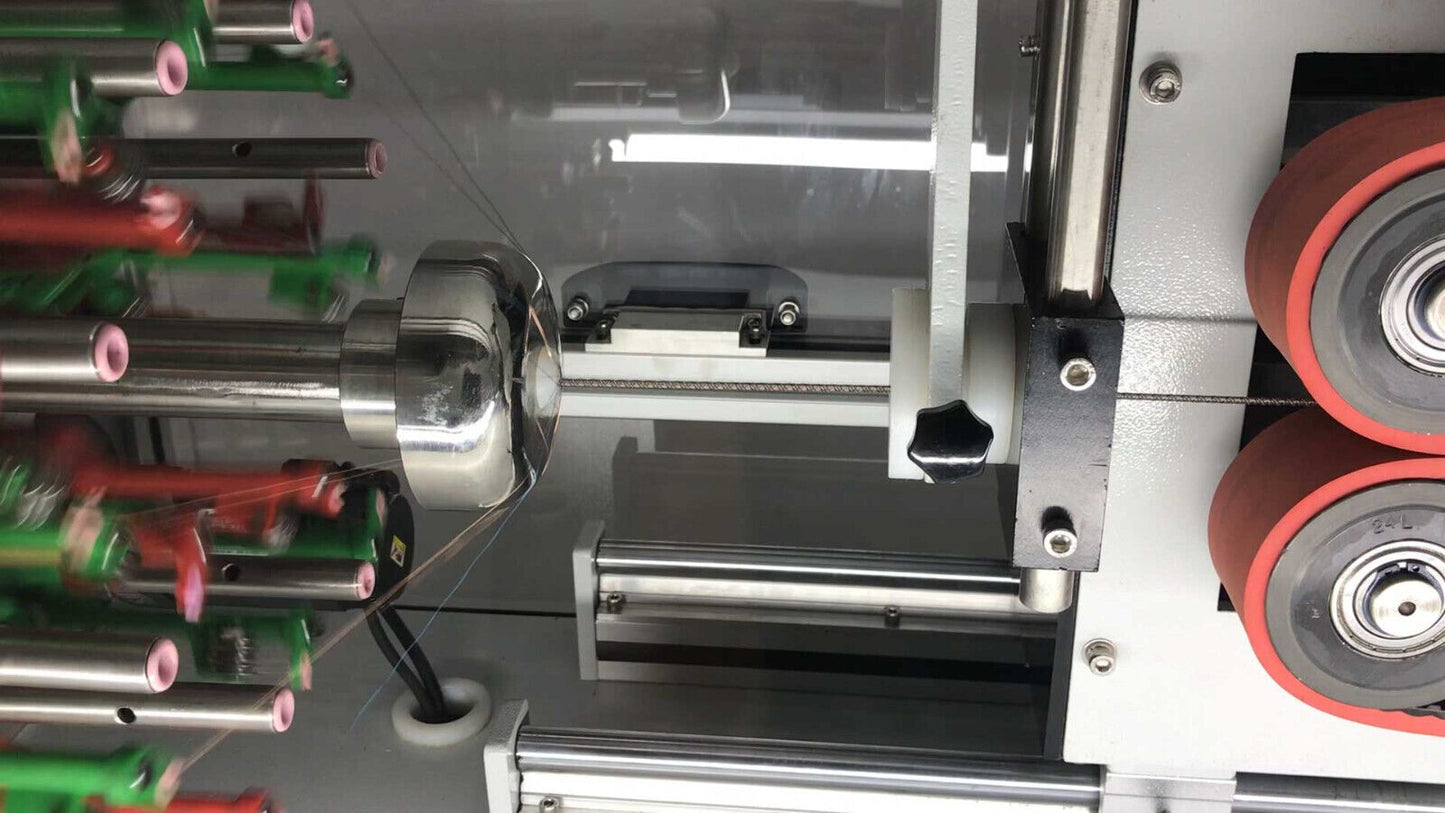

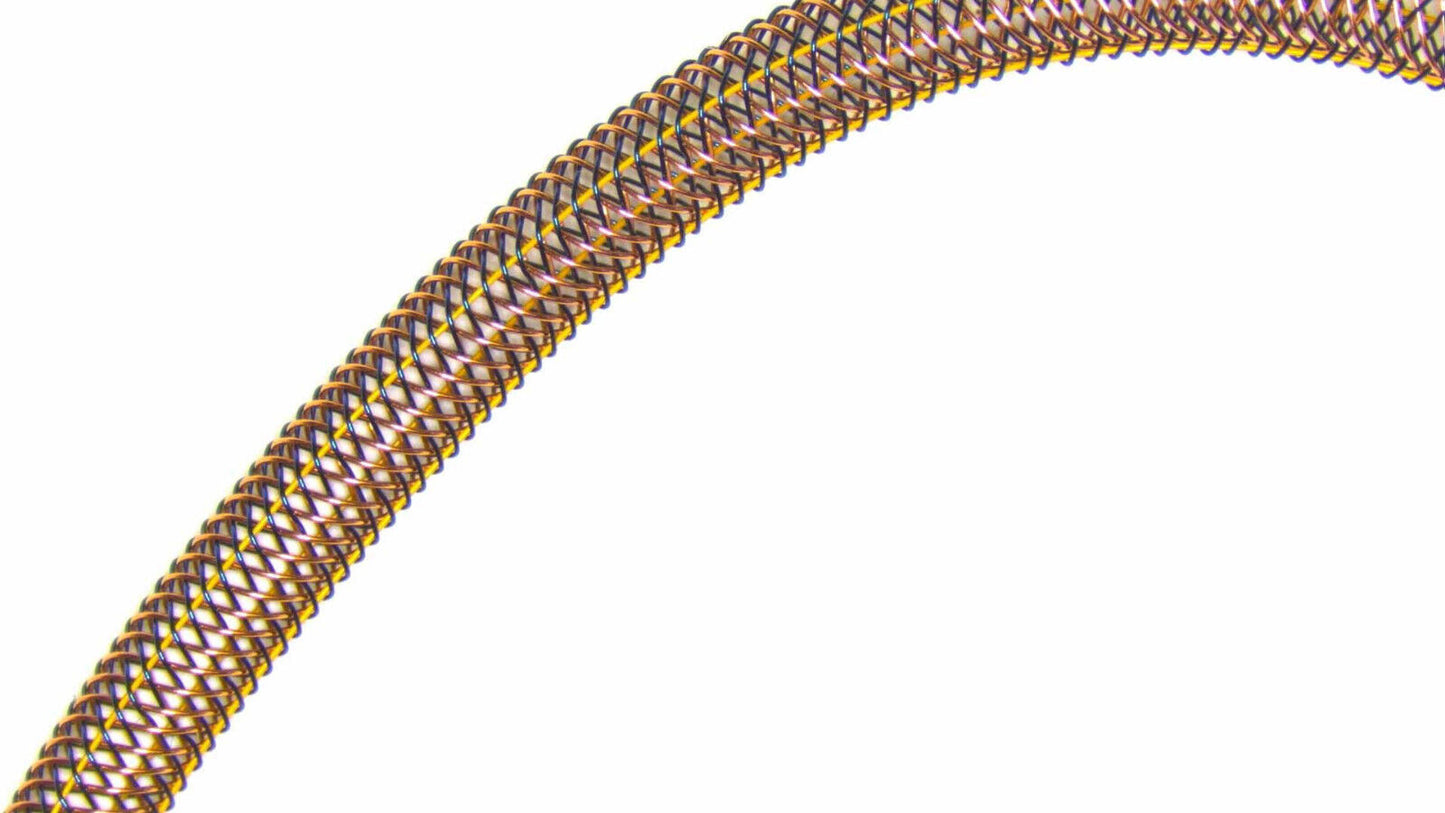

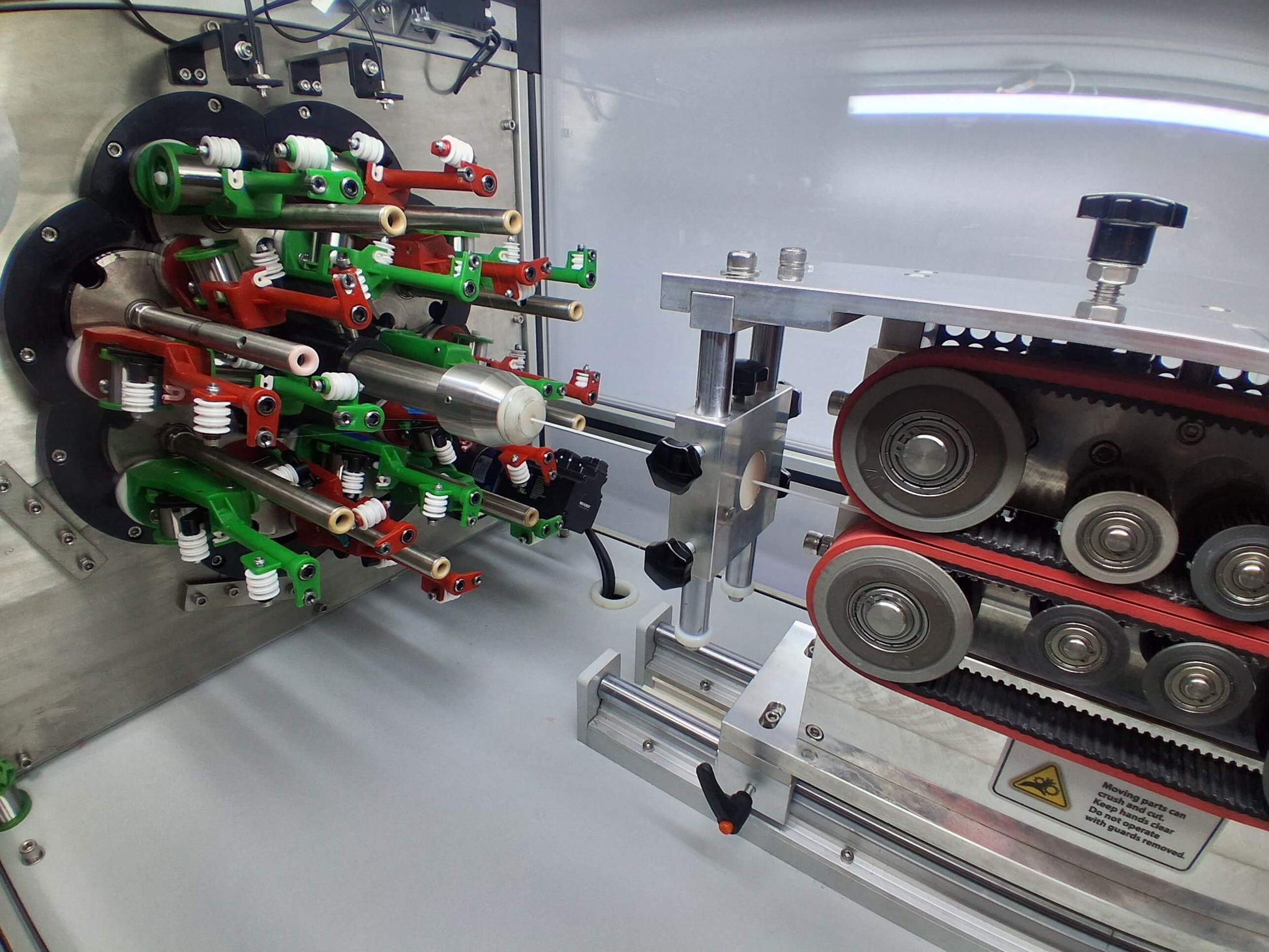

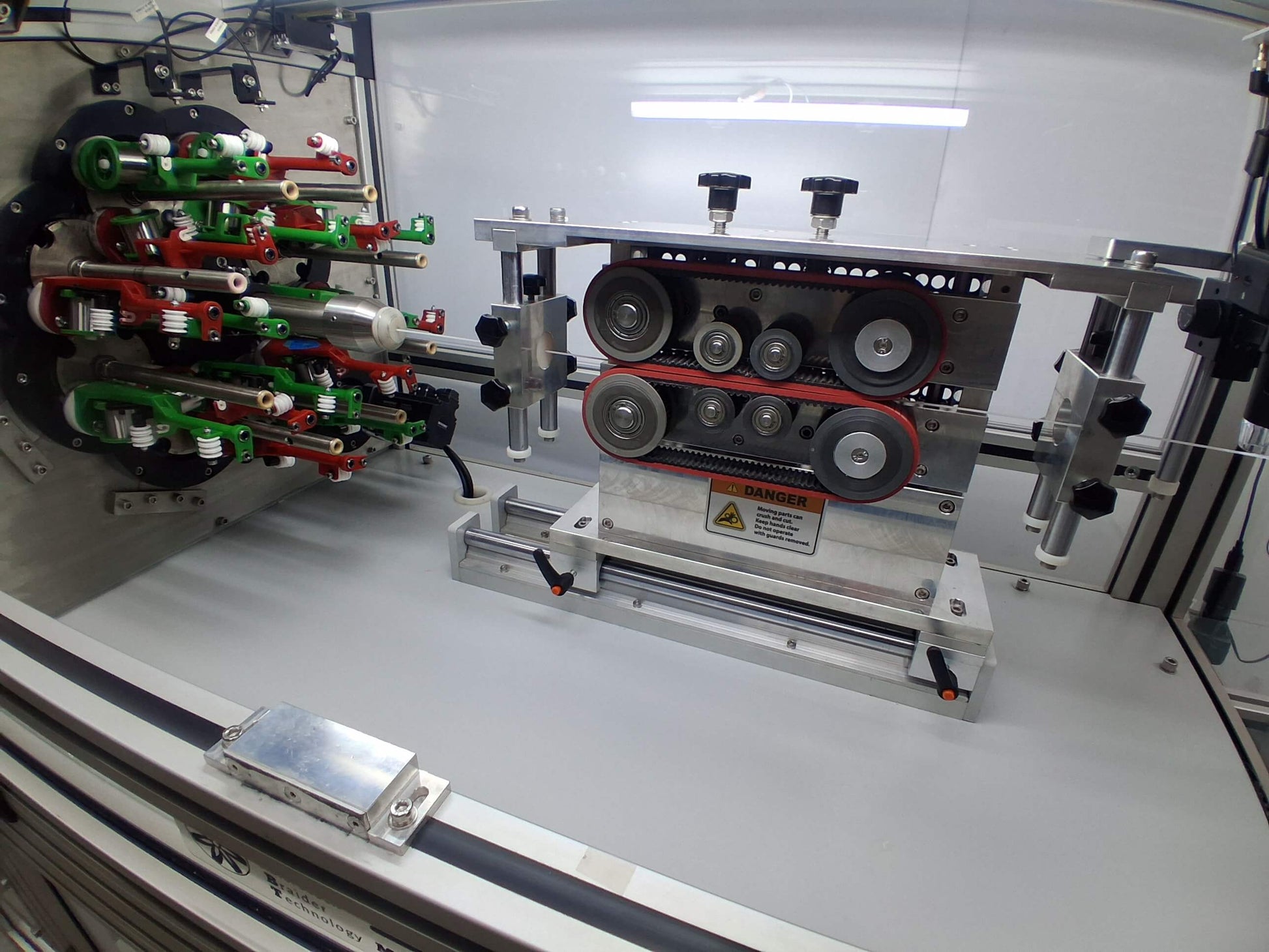

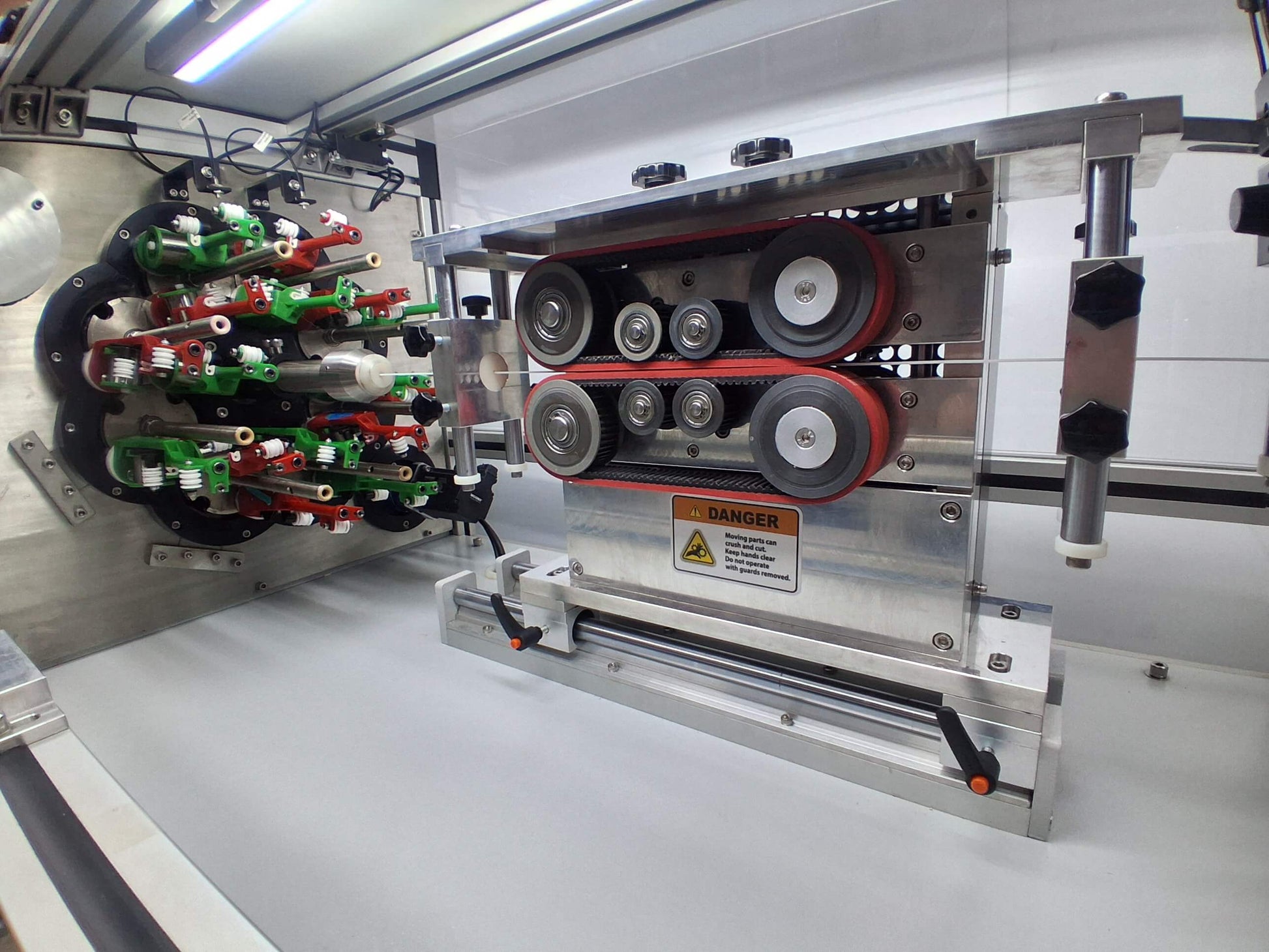

MMBT medical catheter braiders are triaxial braiding capable. The number of triaxials is equal to half the number of carriers. MMBT16CHFWB has 16 spring-loaded virgin nylon carriers with carbide eyelets and optional triaxial kit from 1 to 8 triaxials. Triaxial tubes with ceramic eyelets comes standard. Triaxial kits available for purchase. MMBT's 16 carrier medical braider has 4 horns per gear that can rotate @ 300 RPM and have up to 600 picks/min. Up to 10 segments can be programmed in one recipe, allowing for different PPI for each segment.

Product size for the MMBT16CHFWB is 0 (no core) to 50mm.

The 16 carrier horizontal fine wire medical braider by MMBT can braid a variety of wires and fibers, some examples are:

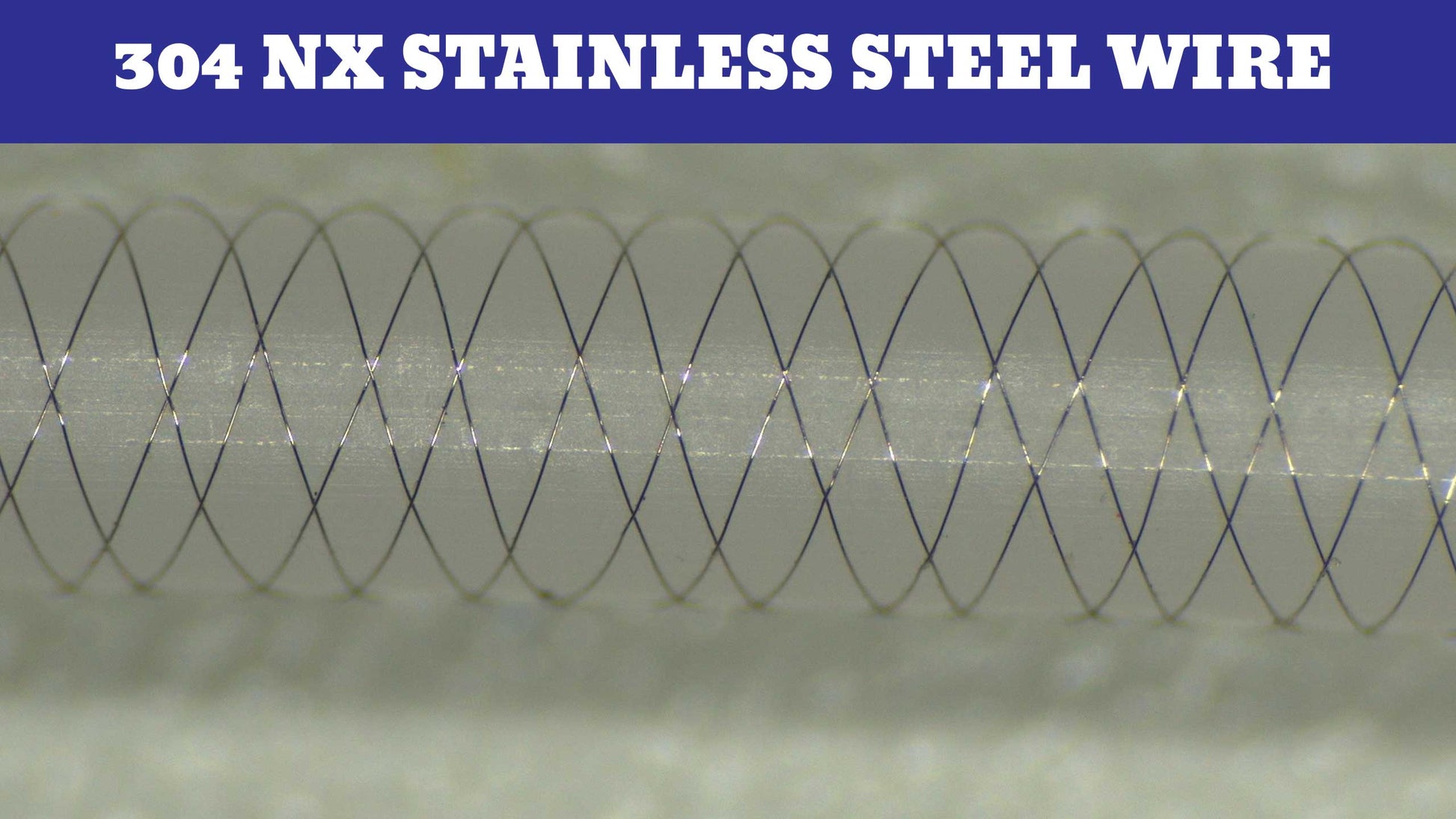

WIRES: Stainless Steel, Copper, Niti, Titanium, Gold, Platinum and Cobolt-Chromium.

FIBERS: Nylon, Polyester, Dyneema, Kevlar, Vectran, Spectra, PET, PEN, PP, PEEK and LCP.

Elegant design, rigid structure, & high output with easy operation.

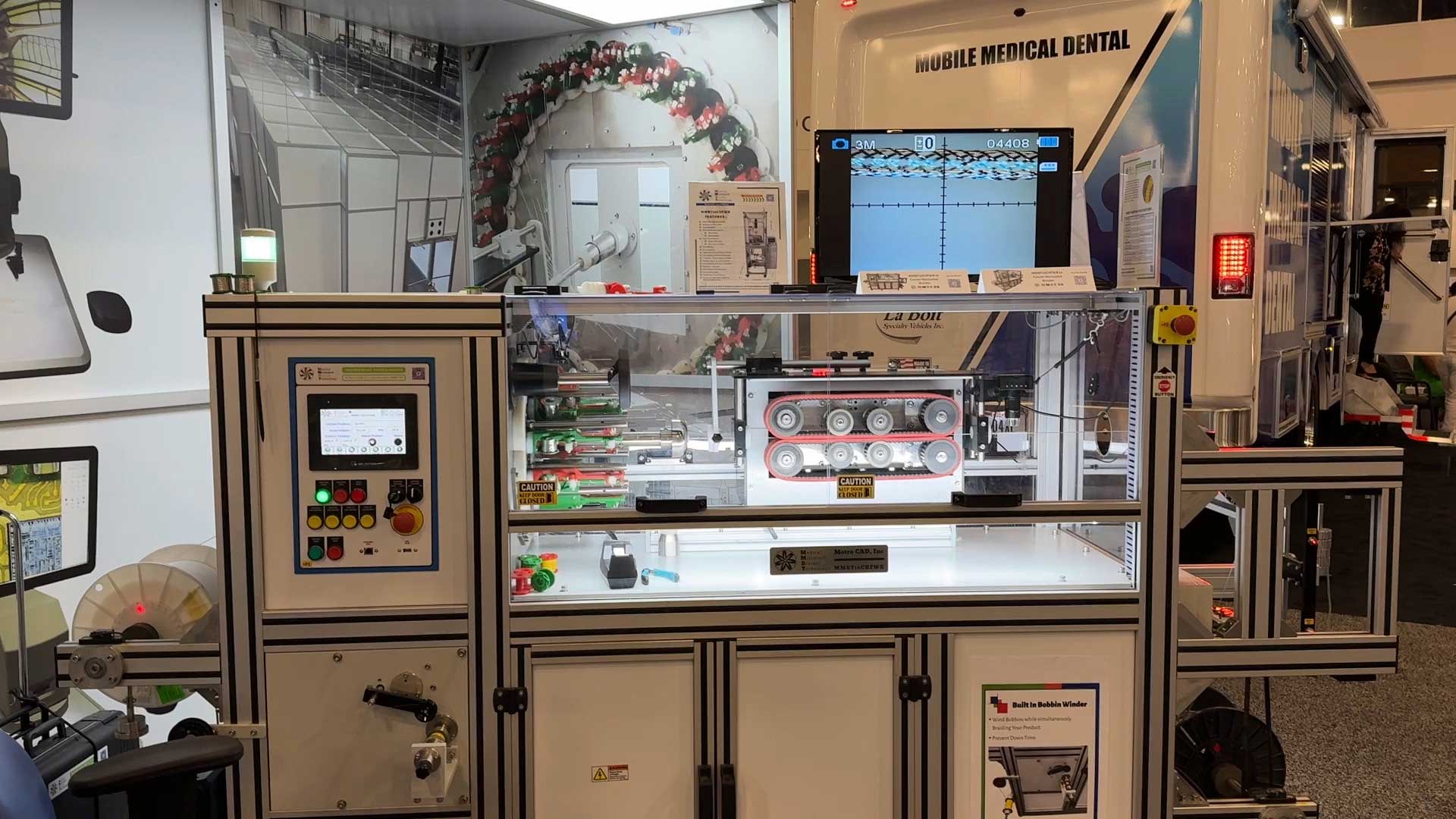

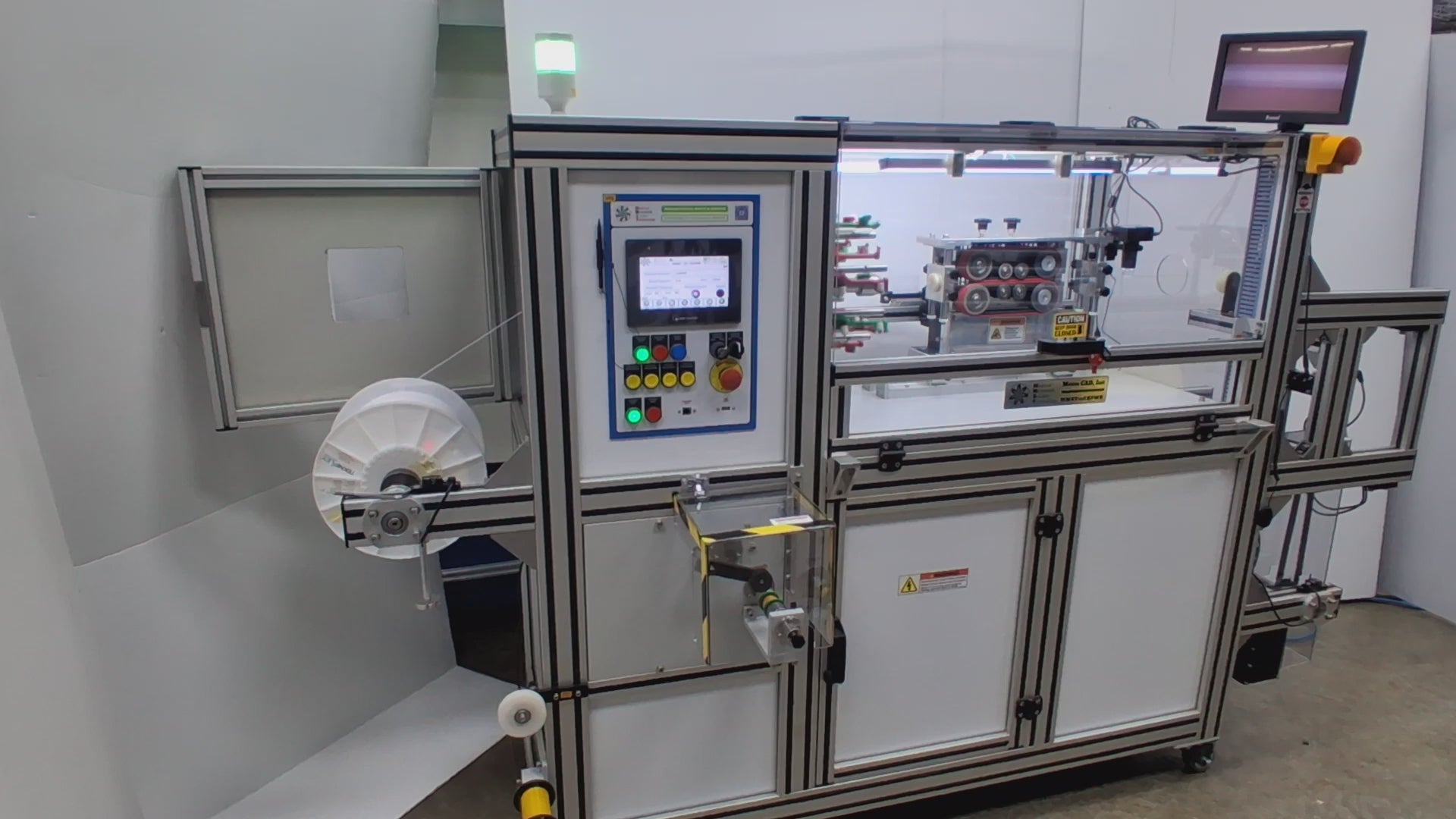

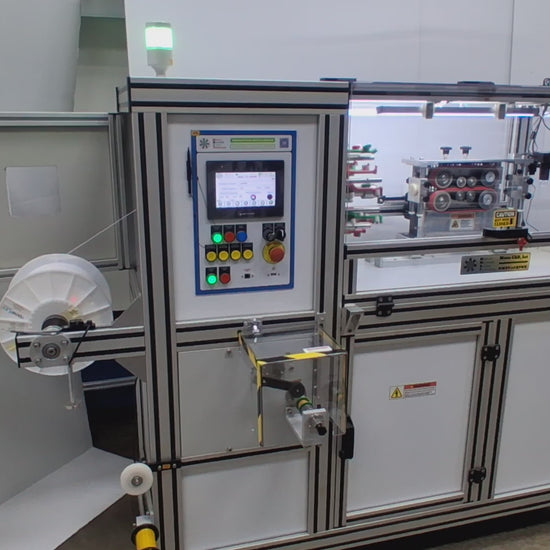

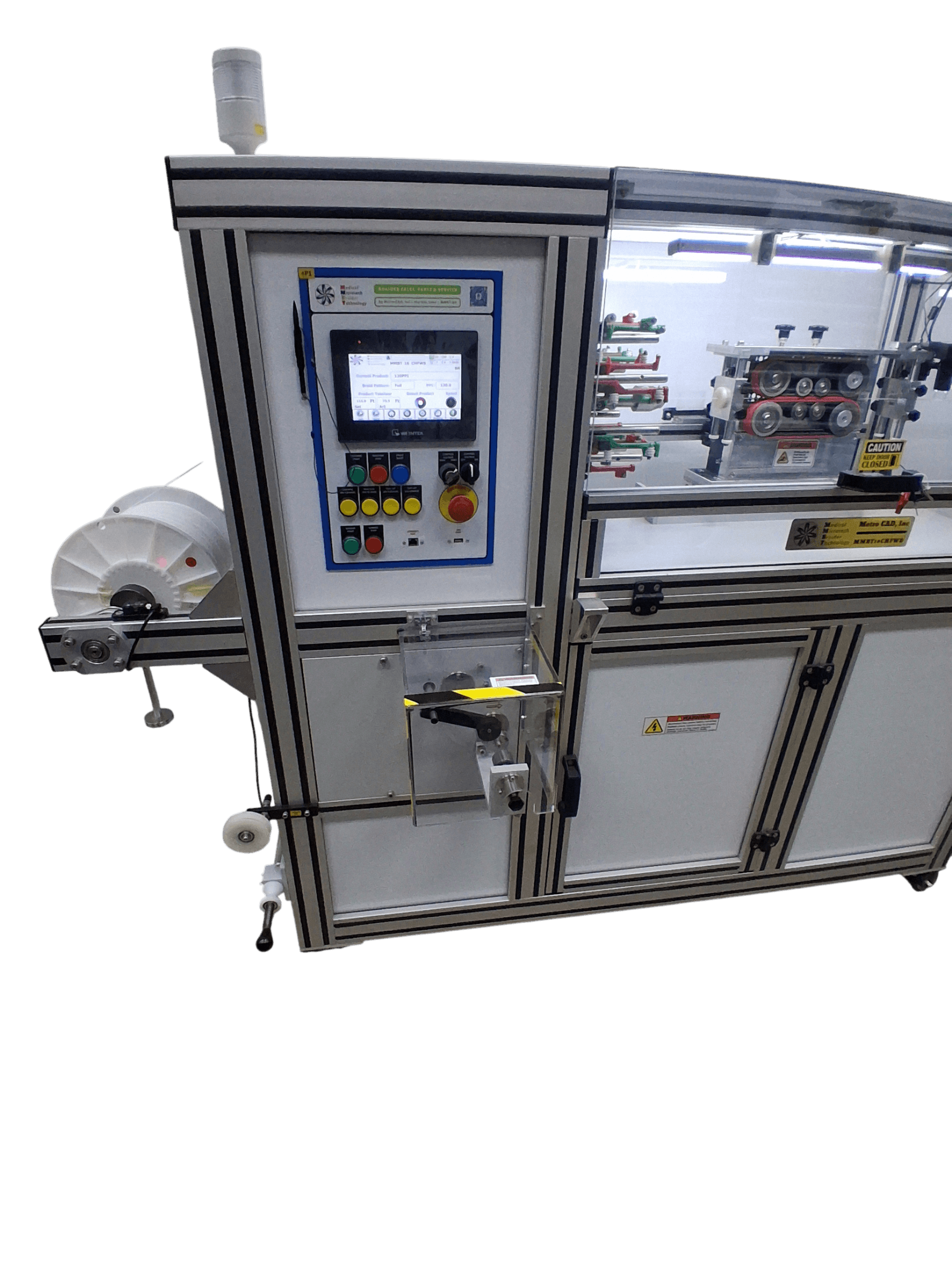

Machine operating elements are grouped on a separate intuitive HMI panel for the ease of operation and clear visibility.

Machine Type : Round Braider
Machine Model : MMBT16CHFWB
Number of Heads : 1
Number of Carriers : 16
Construction : Horizontal
Horn Gear RPM : 300
Track Plate Material : Stainless Steel
Carrier Material : Virgin Nylon with Carbide Eyelets

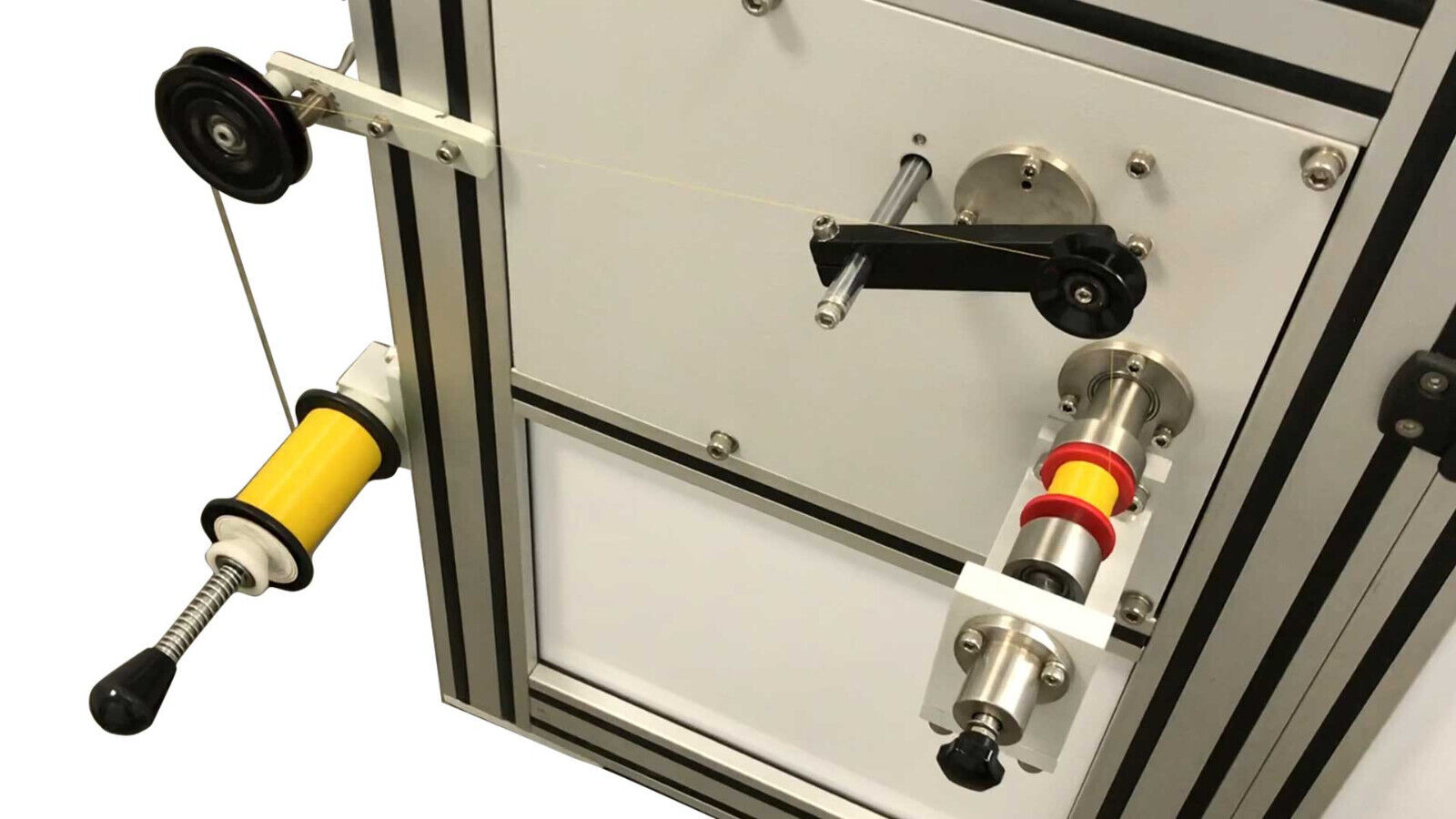

Bobbin Size : Ø40.5 X 26.5mm
Bobbin Material : Virgin Nylon
Bobbin Volume (㎤) : 26
Connected Load (KW) : 1.2
Power Source : 3Ø, 200/230/260VAC/60Hz
Overall Dimensions L X W X H (in) : 98.5 X 51 X 63
Machine Weight (Lbs) : 1,102

Please contact us for a quote.

For Continental USA, lease to buy options available.
