Eliminate QC Guesswork: Inspect Fine Wire Braids in Real-Time with MMBT220X Digital Microscope

In high-precision manufacturing—especially when dealing with medical-grade catheters, structural stents, and advanced digital cabling—what you cannot accurately see, you cannot reliably measure. Manual inspection errors stall production, compromise quality compliance, and cost thousands in wasted materials.

Whether you are looking to upgrade an existing quality control workbench or deploying an entirely new production line, precision verification is no longer optional.

---

Meet the MMBT220X: Real-Time Braid Angle & Pic Count Verification

The MMBT220X Mini HDMI Digital Microscope Camera is a compact, ultra-reliable inspection powerhouse designed specifically to take the guesswork out of fine-wire and fiber analysis. It serves as a vital tool across a variety of manufacturing environments, allowing operators to easily inspect small parts and troubleshoot production errors on the fly.

Advanced PC Software & Measurement Demo

Watch our comprehensive 17-minute video demonstration to see the MMBT220X running its dedicated measurement software suite. This walkthrough highlights exact calibration steps, active on-screen tools, and full inspection capture processes directly through a connected PC.

Precision Calibration & Engineering Annotations

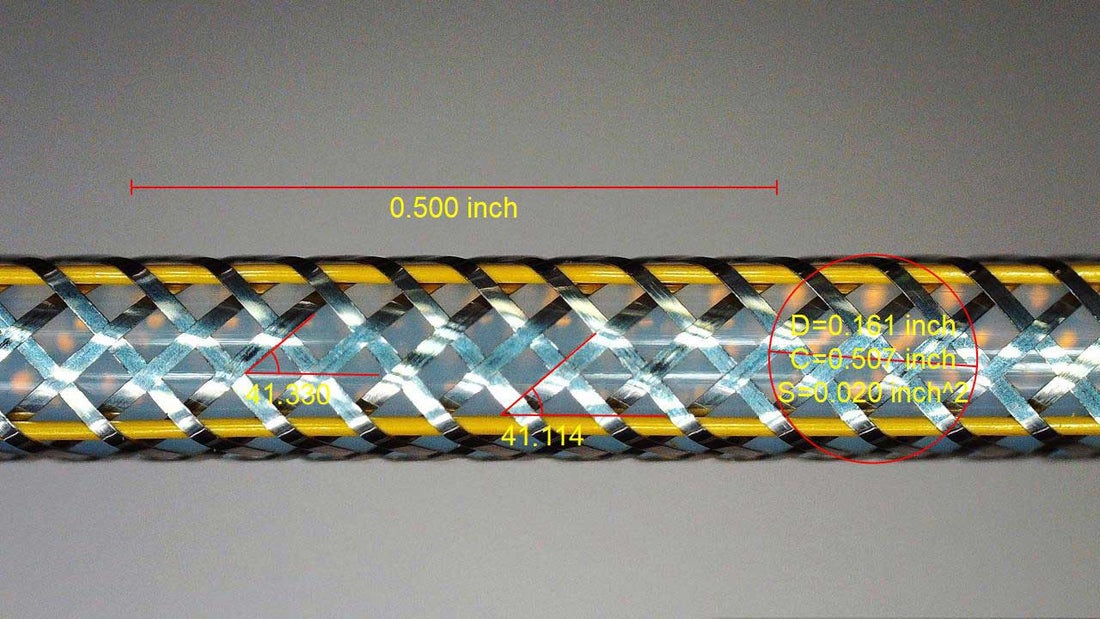

When paired with a connected PC running the optional measurement software, the MMBT220X transforms into a complete documentation suite. Quality control teams can execute on-screen calibrations and drop direct overlays onto live imagery to track:

• Precise Braid Angles: Instantly measure weave geometry against structural specifications.
• Diameter & Radius Tracking: Monitor exact dimensions to guarantee component consistency.
• Annotations & Alignment: Apply digital crosshair overlays and log inspection notes directly on captured images or video.

Order the Standalone MMBT220X Microscope System

---

The Ultimate Production Standard: Built Directly Into Every MMBT Braider

Because precision matters from the very first inch of production, every single MMBT Fine Wire Braider comes standard with an integrated digital camera scope system and a dedicated 12" monitor. This setup includes the exact MMBT220X measuring capabilities detailed above, giving your operators a large, clear view to monitor braid angles and pic counts in real time as the machine runs.

If you need to scale up your manufacturing capacity alongside your quality control tech, we have completely eliminated the industry's notoriously long equipment lead times.

⚡ IN STOCK Now: High-Precision Fine Wire Braiders (Zero Lead Time)

We currently have state-of-the-art Circular Fine Wire Braiders on the floor and ready for immediate deployment. Skip the standard industry wait times. Click any interactive card below to view configuration options, pricing, and specific puller dynamics directly in our store:

Note: Each system comes integrated with its own 12" tracking monitor and can be fully customized with upgraded ceramic precision carriers, customized triaxial kits, and your choice of take-up pullers to match your precise tensioning requirements.

---

📋 Custom Production Routing: Request a Technical Braider Quote

Do your manufacturing protocols call for unique carrier setups or bespoke multi-wire arrangements? We build high-precision systems all the way from 3 to 300 carriers in both vertical and horizontal layouts. Tell our design engineers exactly what your project needs, including wire diameters, core materials, and required structural patterns.

Submit your manufacturing parameters directly through our secure platform to receive a comprehensive technical quote:

Submit Your Braiding Project Specifications Form

---

🛠️ Technical Deep-Dives

To keep this page incredibly fast and easy to navigate on mobile devices, we have organized our deep engineering specifications into collapsible menus. Tap any section below to expand the data.

How MMBT Braiders Work & Weave Patterns

The mechanical architecture relies on individual threads or fine wires intertwisting with one another, crossing from above and below in a highly controlled geometric path. This fabricates a continuous, seamless sleeve featuring a non-orthogonal fiber/wire orientation—an essential property for achieving the torqueability and kink resistance required by medical catheters.

By shifting the basic wire diameter and adjusting the total threads per carrier, operators can change the setup to produce three foundational structural patterns:

• Diamond Braid
• Herringbone Braid
• Half Load Braid

Advanced Triaxial Braiding Capabilities

Every single MMBT configuration—from our compact laboratory units up to our massive 300-carrier platforms—is fully triaxial braiding capable with the purchase of an MMBT triaxial kit.

• Density Limits: You can utilize a total number of triaxial positions equal to up to half the total carrier count of the machine (e.g., up to 8 triaxial positions on our in-stock 16-carrier systems).
• Structural Advantage: Triaxial braiding allows engineering teams to insert longitudinal reinforcement axial members directly into the sleeve, increasing column stiffness and stability without adding outside diameter bulk.

Full MMBT220X Technical Specifications

Display	2.4" LCD Screen (Supports standalone inspection)
Magnification	10X to 220X (With digital zoom controls)
Image Sensor	3 Mega Pixels
Video Output	1080P HDMI / TV / USB
Focusing Range	Manual Focus from 10mm to 50mm
Illumination	6 Integrated LEDs with an Adjustable Dimmer wheel
Power Supply	Built-in Li-Ion Rechargeable Battery or constant 5V DC Power Supply
Included Assets	Heavy-Duty Microscope Stand, Wireless Remote Control, and SD Card

Industrial Frame & Cleanroom Floor Engineering

Engineered to maximize space, ease of operation, and long-term durability, all MMBT frames include:

• Heavy-Duty Construction: Built on a rugged aluminum frame featuring a precision braider plate, puller assembly, and integrated pay-off/take-up handlers.
• Full Floor Mobility: The entire structural frame is mounted on heavy-duty wheels, allowing for quick cleanroom reconfigurations.
• Operator Interface: Outfitted with an intuitive digital touch control panel and secure electrical enclosure.
• Production Floor Efficiencies: Features an integrated, built-in bobbin winder to accelerate material changeovers, alongside an acoustically optimized architecture for quiet operation.

---

Bring Real-Time Precision to Your Production Floor

Don't let long equipment lead times or standard human inspection limitations throttle your operational throughput. MMBT by Metro CAD provides the immediate infrastructure you need to deploy, verify, and scale your production line today.

View Full In-Stock MMBT Braider Lineup Claim Your MMBT220X Microscope Inspection System

Have technical questions regarding our custom carrier upgrades, puller selections, or triaxial calibration kits? Contact the Metro CAD technical sales team today for immediate, on-demand engineering support.
