Unlocking Precision and Efficiency with MMBT Digital Readout: A Game-Changer for Medical Device Manufacturers

Understanding MMBT Digital Display Readout

MMBT's Digital Display Readout is a powerful feature on two of MMBT’s most popular toolscope microscopes: MMBT-800 XYZ Tool Scope and MMBT-1D XY Tool Scope. These toolmaker microscopes are designed to measure components with utmost accuracy, providing detailed and actionable insights for manufacturers of medical devices, particularly those involved in the production of catheters, stents, and other delicate devices.

Key Features of the MMBT Digital Readout:

1. Multiple Axis Measurements (XYZ vs XY):
   • MMBT-800 Tool Scope can measure in three dimensions (X, Y, and Z axes), while the MMBT-1D Tool Scope measures in two dimensions (X and Y axes).
   • MMBT-800 provides a more comprehensive approach, especially useful for parts that require precise height or depth measurements, such as stents or catheter tips.
   • MMBT-1D is more suited for simpler measurements, particularly for components like tubing or flat surfaces.

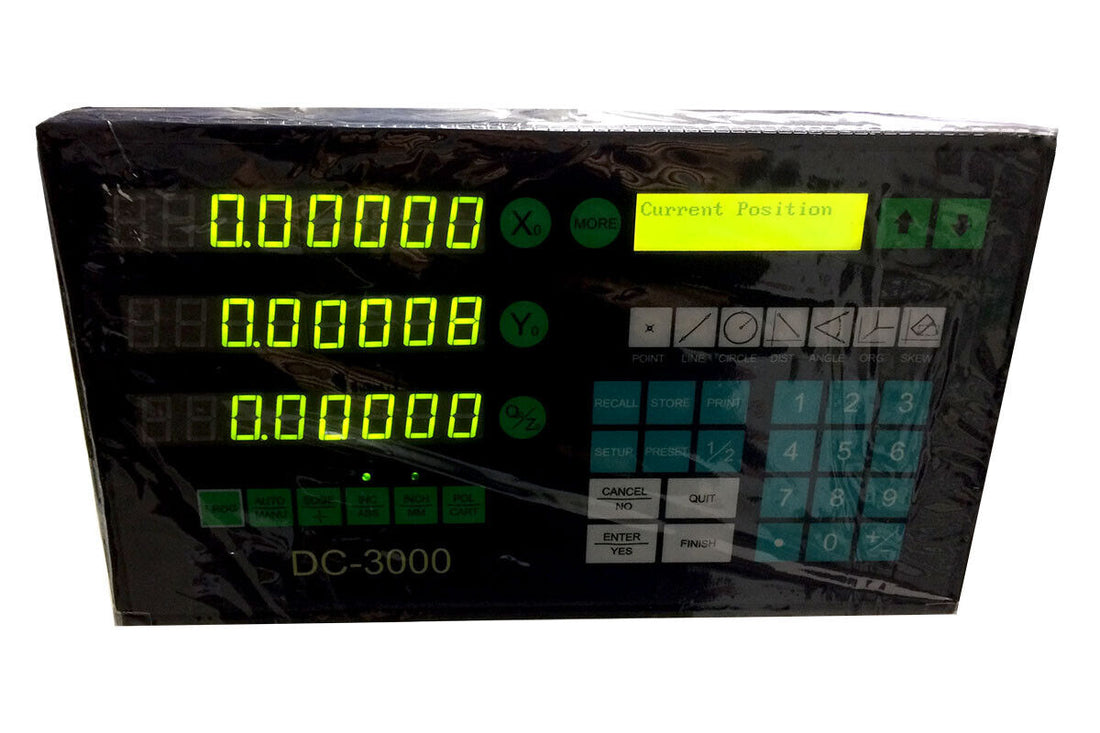

2. Digital Readout Display:
   • The digital display shows measurements in millimeters (mm) or inches, allowing users to switch units based on preference.
   • The display is intuitive and user-friendly, showing the X, Y, and Z axes in real-time, giving operators instant feedback on the dimensions they are measuring.
   • Whether working with absolute measurements or incremental measurements, the display can easily accommodate both.
3. Customizable Measurement Features:
   • MMBT's digital readout enables manufacturers to take a wide variety of measurements:
     • Points: Mark specific locations on the component.
     • Lines: Measure lengths or distances between two points.
     • Circles: Ideal for circular components such as stent tubes or catheter ends.
     • Distances: Precise linear measurements between defined points.
     • Angles: Essential for checking angular components or the inclination of device features.
     • Rectangles: Useful for measuring square or rectangular cross-sections, which is common in stents and catheters.
     • Skew Measurements: Evaluate the alignment and shape distortion of parts.
     • Complex Measurements: For intricate shapes or components that don’t fit simple geometric classifications.
4. Measurement Points and Accuracy:
   • With up to 50 points per measurement, the MMBT digital readout system can gather extensive data on every component, enhancing the accuracy of the measurement.
   • The more points you use in a measurement, the more precise and reliable the results become, which is crucial in medical device manufacturing where even the smallest variance can lead to defects or regulatory non-compliance.
5. Cartesian vs Polar Coordinates:
   • Two different measurement systems: Cartesian (X, Y, Z) and Polar (radius and angle).
   • While Cartesian is standard for most applications, Polar coordinates are ideal when measuring circular or rotational components, such as the radii of stent structures or catheter bends.
6. Data Storage and Programs:
   • MMBT's digital display readout supports up to 100 stored measurements or features, allowing users to easily recall previous measurements or setups for quick reference.
   • Additionally, up to 10 temporary measurements can be stored, offering users flexibility during production. Temporary measurements are easily accessed by pressing the up and down arrows on the LCD screen.
   • Upon turning off the microscope, the temporary measurements are erased, ensuring the tool resets for future use.
   • MMBT's digital display readout also enables the saving of up to 10 programs, each containing up to 100 steps. This is especially beneficial for high-volume manufacturing environments, as it allows for fast, repetitive measurements of the same part geometry without having to reprogram the tool each time.

---

Why MMBT’s Digital Display Readout is Essential for Medical Device Manufacturers

1. Ensuring Consistent Quality Control

The primary application of MMBT's digital display readout is in the medical device industry, in quality control (QC). Precision and consistency are non-negotiable in medical device production, especially in fields like catheter and stent manufacturing, where even minute deviations can result in significant performance issues or safety concerns.

With its ability to perform complex measurements with high accuracy, MMBT's Digital Display Readout ensures that manufacturers can track the quality of their products at every stage of production. Whether it's checking the consistency of catheter tube diameters or ensuring that stent features align correctly, the digital readout system guarantees that critical measurements are met within stringent tolerances.

2. Increased Efficiency and Time Savings

The ability to store up to 100 measurements or features and save 10 custom programs significantly boosts productivity, especially in high-volume manufacturing. Manufacturers often produce large batches of similar components, and MMBT's Digital  Display Readout allows operators to quickly apply previously stored measurements and programs, minimizing setup times.

Instead of recalculating and reprogramming measurement steps for every batch, operators can simply select the pre-saved program, leading to reduced human error, faster turnaround times, and a more efficient workflow overall. This is especially crucial in the medical device industry, where production timelines are tight, and delays can result in significant financial and reputational losses.

3. Reducing Measurement Errors

Human error in measurements can be a significant issue in any manufacturing setting, but it becomes even more critical in medical device production. MMBT's Digital Display Readout minimizes human error by providing automated, precise measurements directly displayed on the screen.

With features like incremental and absolute measurements, operators can ensure that all parts conform to exact specifications, reducing the chances of defects and ensuring that every stent or catheter is up to standard. The ability to measure in polar or cartesian coordinates also ensures that the system is adaptable to various component shapes and geometries, providing manufacturers with flexibility while maintaining accuracy.

4. Optimizing Design Verification and Testing

The ability to take measurements like angles, distances, and complex shapes is invaluable during the design verification and testing stages. Whether it’s confirming the diameter of a stent, the length of a catheter, or the alignment of components, MMBT's Digital Display Readout provides the accuracy and versatility necessary for thorough testing.

Up to 50 points per measurement ensures that designs are thoroughly evaluated from multiple dimensions, providing confidence in the integrity and functionality of each device. This level of measurement detail helps ensure that devices are not only safe but also perform optimally when put to use in real-world clinical settings.

---

Conclusion: The Future of Medical Device Manufacturing with MMBT’s Digital Readout System

In today’s fast-paced and highly regulated medical device industry, precision is key. MMBT's Digital Display Readout, integrated into MMBT-800 XYZ Tool Scope and MMBT-1D XY Tool Scope, offers manufacturers a reliable, efficient, and versatile solution to ensure that catheters, stents, and other medical devices meet the highest standards of quality.

With its ability to measure multiple axes, perform complex geometric calculations, store measurements, and automate repetitive tasks, MMBT's Digital Display Readout ensures that manufacturers can produce consistently high-quality products, reduce errors, and save valuable time.

By incorporating this cutting-edge tool into the manufacturing process, medical device companies can maintain compliance with regulatory standards while improving efficiency, reducing costs, and ultimately delivering products that enhance patient care.

Whether you're a tool scope tool maker or involved in quality control for stents and catheters, MMBT's Digital Display Readout is a game-changer for achieving the precision and efficiency needed to stay ahead in the competitive world of medical device manufacturing.
