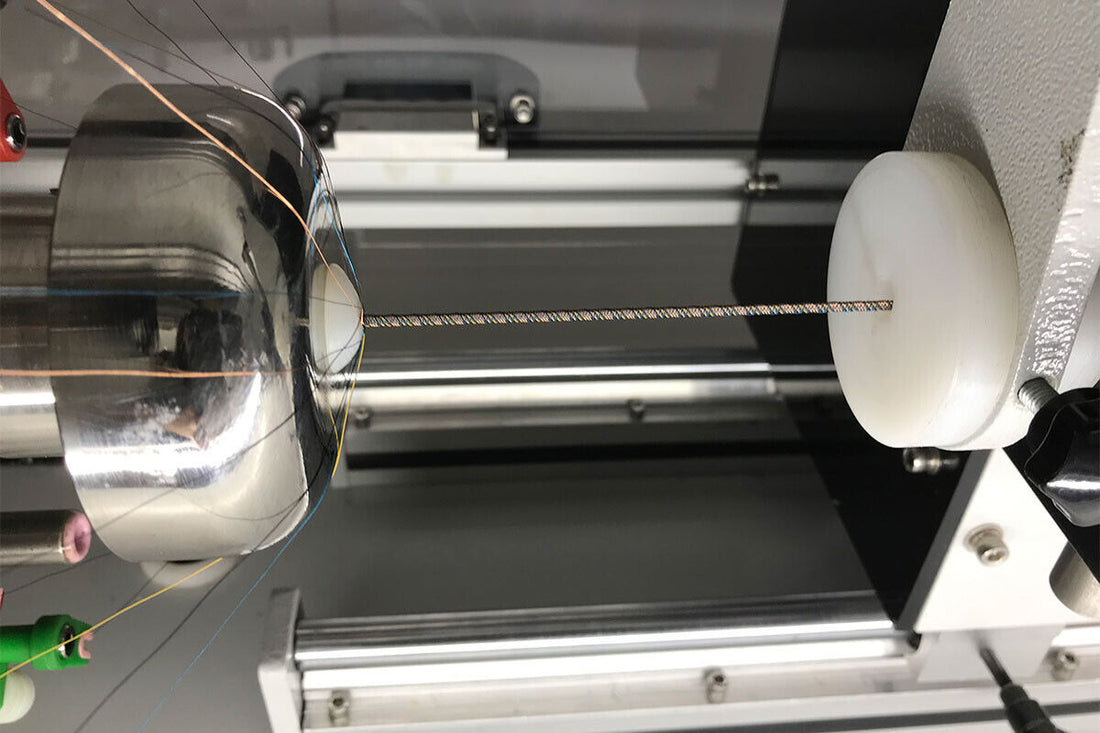

mmbt-16-carrier-horizontal-medical-braider-fine-wire

MMBT Medical Braiders Quiet Cost Effective Braid Wire .01" to .001"

Have you ever wondered how thin wires can be efficiently braided for medical applications? MMBT Medical Braiders offer a solution that is not only quiet but also cost-effective. MMBT fine wire medical braiders offer a high quality build that meets the demands of the medical industry. Let's dive into the features of MMBT16CHFWB, our 16 carrier horizontal braider.

Braid Fine .001" 304V Stainless Steel Wire

MMBT braiders can braid fine wire as thin as .001" with precision and reliability. MMBT16CHFWB, a 16 carrier horizontal medical braider, is designed to handle the intricate task of braiding ultra-thin wires such as .001" 304V stainless steel wire. MMBT braiders can work with wire diameters ranging from .01" to .001", offering versatility for various medical applications.

48-wire-braid-braided-on-mmbt-16-carrier-braider

Can MMBT braiders handle different wire types?

Yes, MMBT braiders are capable of braiding flat, round, or twisted wire, making them suitable for a wide range of medical devices. Whether you need to braid single or multiple wires on a bobbin, MMBT braiders can accommodate your specific requirements with precision.

Examples of Wires MMBT Braiders Can Braid

  • Stainless Steel
  • Copper
  • Niti
  • Titanium
  • Platinum
  • Cobolt-Chromium

Examples of Fibers MMBT Braiders Can Braid

  • Nylon
  • Polyester
  • Dyneema
  • Kevlar
  • Vectran
  • Spectra
  • PET
  • PEN
  • PP
  • PEEK
  • LCP

MMBT Braiding Machinery Braid Patterns

  • Full load “Regular” or “Herringbone” Braid (1 over 2 under 2)
  • Full load “Diamond” Braid (2 over 2 under 2)
  • Half Load Braid (1 over 1 under 1)
  • Chase Wire (1 over 1 under 1 +)
  • Triaxial Braid (Accessory kit available)

To learn more about specific features of each braid pattern please read this blog.

Adjust Tension Control on Bobbin

The bobbin release tension on MMBT16CHFWB can be adjusted from a range of 10g to 550g, allowing for precise control over the braiding process.

Built-in Bobbin Winder Enhance Productivity

All MMBT horizontal braiders come equipped with a built-in bobbin winder that can be operated during production, ensuring seamless workflow and consistent braiding quality.

Bobbin Size : Ø40.5 X 26.5mm
Bobbin Material : Virgin Nylon
Bobbin Volume (㎤) : 26

mmbt-16-carrier-horizontal-braider-digitial-camera-scope-added

Microscope Camera Monitor Braid Quality

One of the standout features of MMBT braiders is the inclusion of a microscope camera. This innovative addition enables real-time monitoring of the braid quality, ensuring that each wire is braided to perfection. With the microscope camera, you can maintain a high level of quality control throughout the braiding process live in real time.

Quiet Operating Fine Wire Medical Braiders

MMBT braiders are designed to operate quietly. MMBT16CHFWB a 16 carrier horizontal braider, running at full machine speed (300 rpm) is 80.1 dB. MMBT16CHFWB running at half speed (150 rpm) is a quiet 74 dB. This ensures a peaceful working environment without compromising on performance.

Schedule a Demo To See MMBT Braiders

With the ability to braid ultra-thin wires with precision and efficiency, MMBT Medical Braiders offer a cost-effective solution for medical device manufacturers. The versatility, reliability, and advanced features of MMBT braiders make them a top choice for braiding applications in the medical industry.

Explore the capabilities of MMBT Medical Braiders and experience the difference in braiding quality for your medical devices. Trust in the precision and performance of MMBT braiders for all your fine wire braiding needs. Schedule a demo to see MMBT braiders perform live email sales@metro-cad.com or call 763-595-7307.
